Commercial planning
- Sample MOQ
- 1 unit
- Typical lead time
- 20 business days
1 of 8

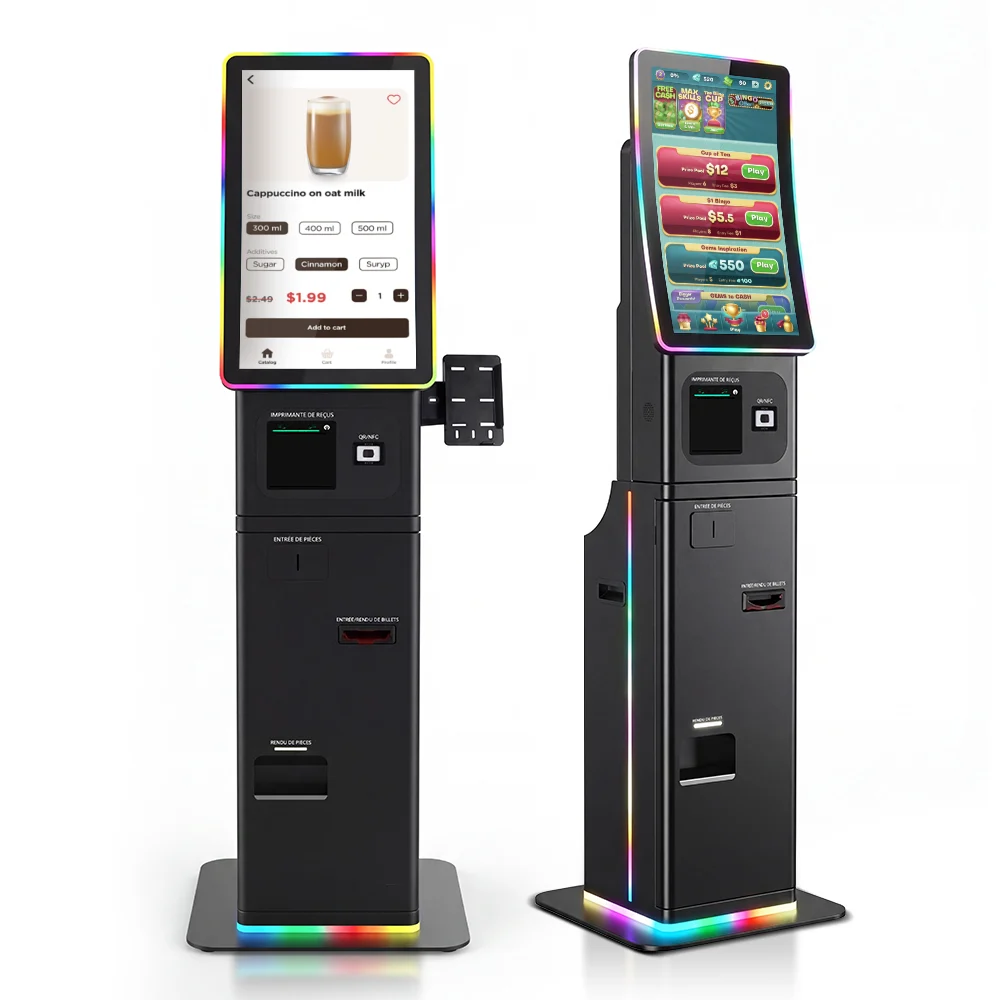

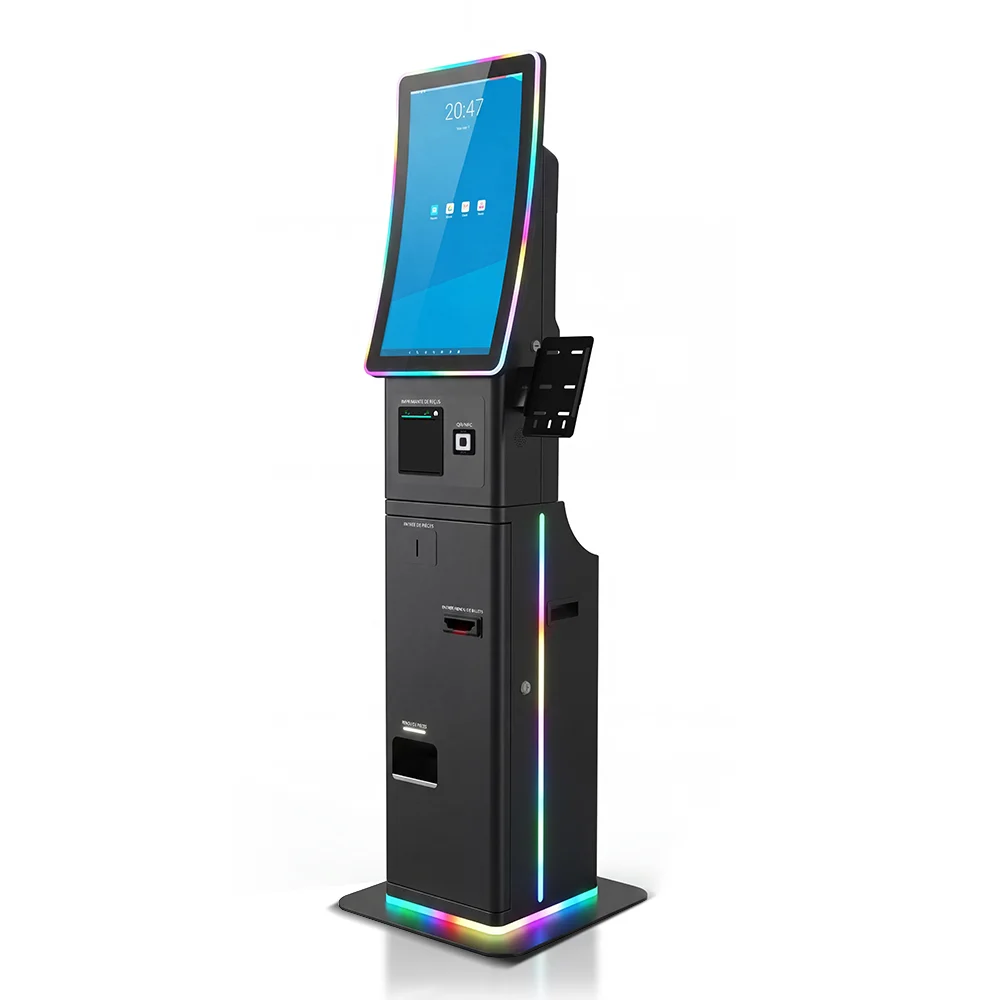

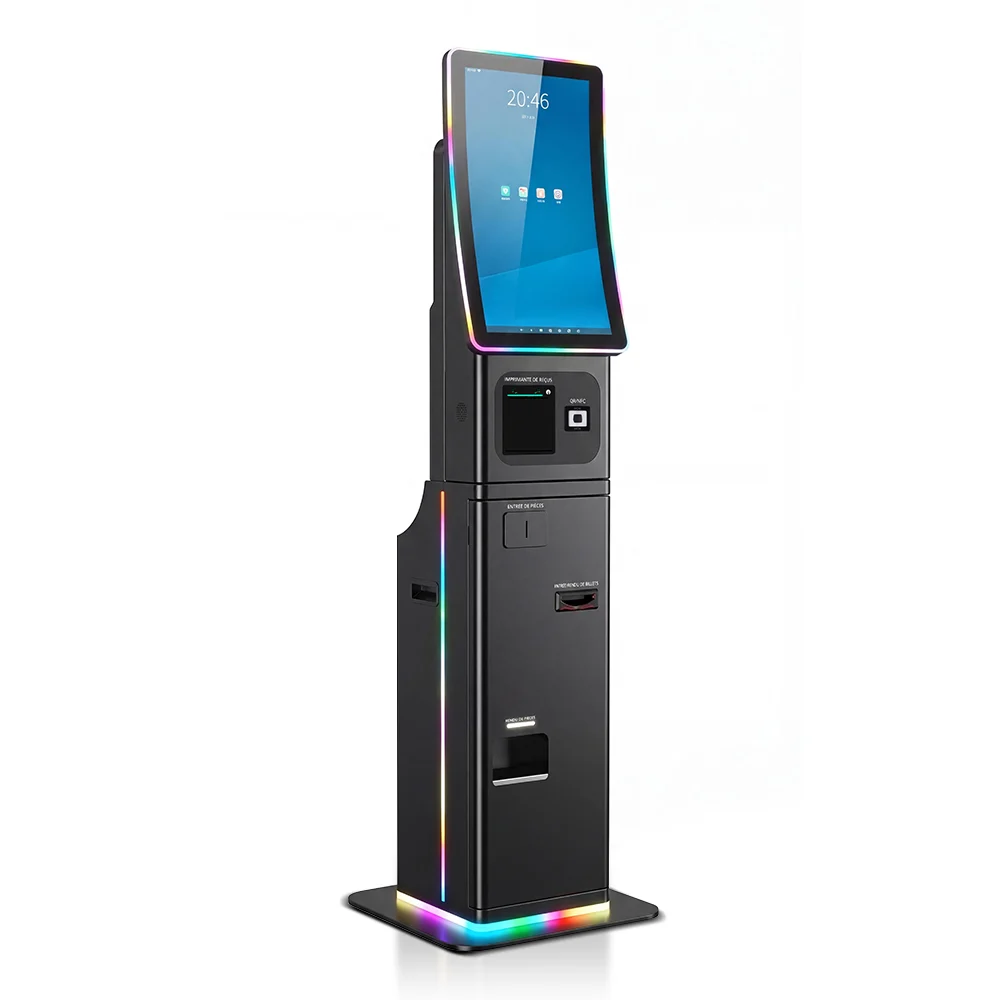

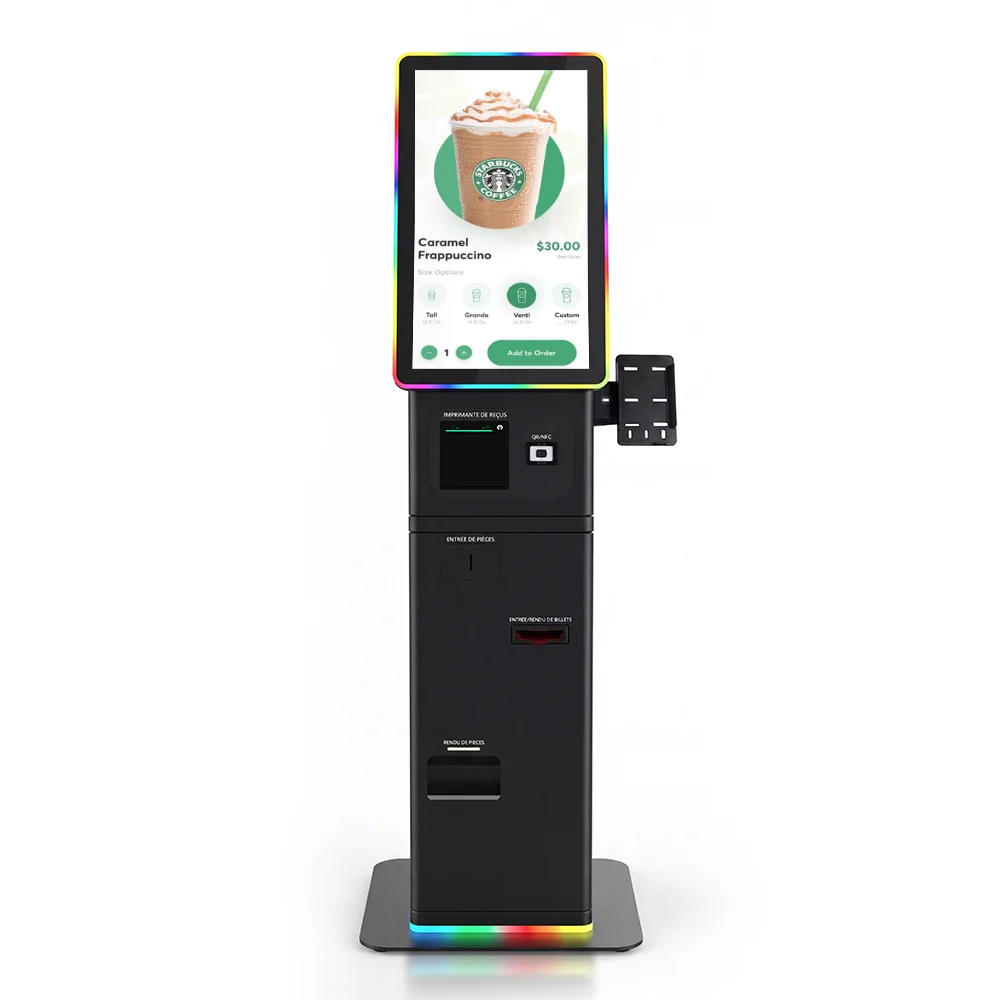

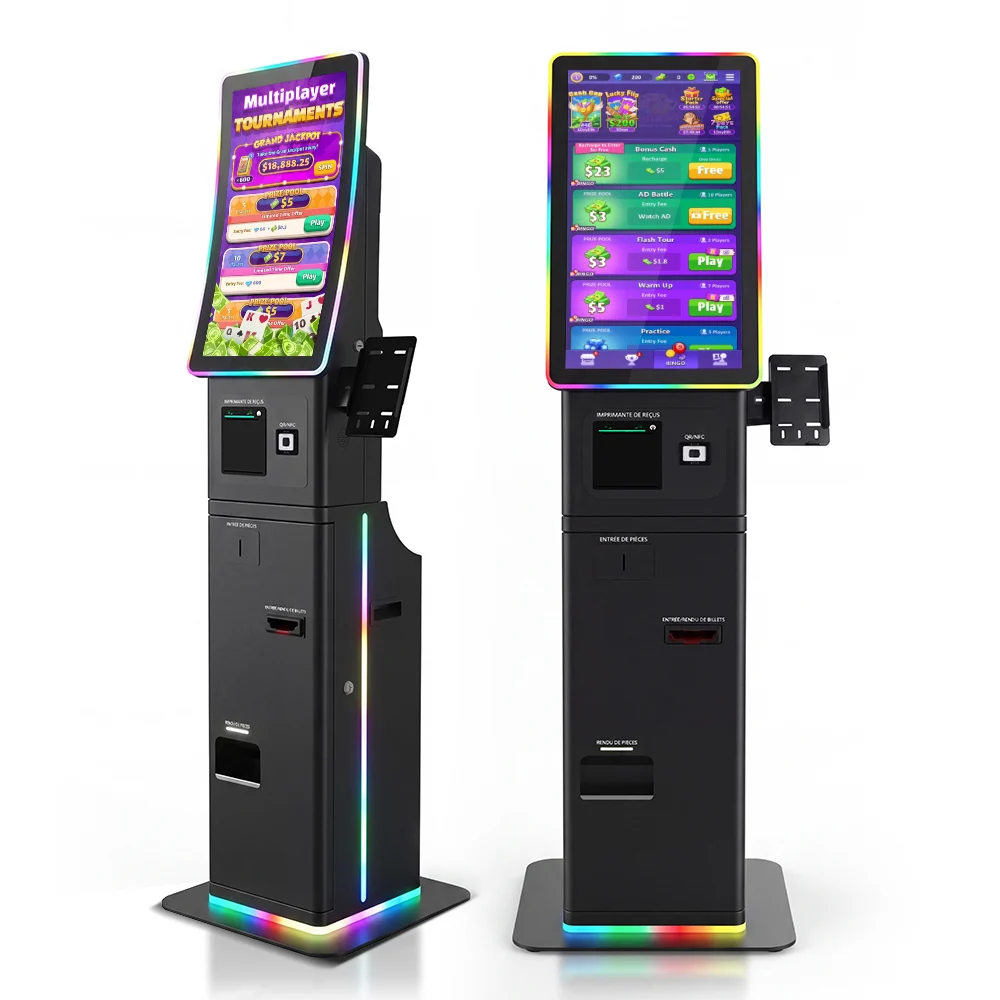

US-K236CB-1 product view 1
Freestanding kiosk
CURVED CASH‑READY KIOSK CABINET
US-K236CB-1
- Compact sturdy metal cabinet
- 23.6" full‑bonded curved capacitive touchscreen
- Multi‑currency note & coin recycling, anti‑counterfeit
- Full SDK for secondary development
- Minimum order
- 1 unit
- Typical lead time
- 20 business days
- Product format
- Freestanding kiosk
- Project scope
- Configured to order
Original supplier PDF. Review configuration options and confirmation notes in the specifications below.
Specifications
Product specifications, in one view.
Review the supplied hardware parameters, configuration options and original document before selecting your kiosk.
US-K236CB-1 specification sheet
Original English PDF · 6 pages · 0.24 MB
Get the specification PDF
Options are not all standard equipment. TBD and estimated values require confirmation.
| Specification | US-K236CB-1 |
|---|---|
| Physical characteristics | |
| Overall Dimensions | 1700 * 471 * 500 mmPDF p. 3 |
| Package Dimensions | 1865 * 580 * 660 mmPDF p. 3 |
| Net Weight | 75 KGPDF p. 3 |
| Gross Weight | 102 KGPDF p. 3 |
| Display | 23.6 inch Curved TFT-LCD, R1500 curvaturePDF p. 3 |
| Aspect ratio | 16:9PDF p. 3 |
| Resolution | 1920×1080PDF p. 3 |
| Backlight | LED backlightPDF p. 3 |
| Brightness | 250 cd/m²(Typ.)PDF p. 3 |
| Contrast | 1000:1(Typ.)PDF p. 3 |
| Response time | 10 msPDF p. 3 |
| Color reproduction | 16.7M colorsPDF p. 3 |
| Viewing angle | 89°/89°/89°/89°PDF p. 3 |
| Touch Mode | Finger or conductive stylusPDF p. 3 |
| Included Accessories | 1.8 m power cable ×1; front-door key ×2; back-door key ×2; switch-panel key ×2; voucher-printer key ×2PDF p. 3 |
| Computing options | |
| CPU | Intel I3, I5, I7, J6412 / RK3568, 3576, 3588PDF p. 4 |
| Operating System | Android 11, 13, 14, 16 / Windows 10 , 11 / Linux Debian, UbuntuPDF p. 4 |
| Memory | Windows: 4 / 8 / 16 / 32 / 64GB; Android: 2 / 4 / 8GBPDF p. 4 |
| Storage | Windows: 128GB / 256GB / 512GB / 1T; Android: 16GB / 32GB / 64GB / 128GB / 256GBPDF p. 4 |
| Interfaces | |
| LAN Port | 1 × RJ45PDF p. 4 |
| USB Port | 4 × USBPDF p. 4 |
| DC Power Port | 1PDF p. 4 |
| Operating environment | |
| Operating Temperature | 0 ℃ ~ 40 ℃PDF p. 4 |
| Storage Temperature | -20 ℃ ~ 55 ℃PDF p. 4 |
| Operating Humidity | < 80% non-condensingPDF p. 4 |
| Storage Humidity | < 90% non-condensingPDF p. 4 |
| Power | |
| Power Supply | AV100-240V 50/60hzPDF p. 4 |
| Standby Max Power | Est. 120 WPDF p. 4 |
| Continuous Operation | 7×24 hoursPDF p. 4 |
Peripheral and cash-handling specifications
The following modules are described in the source document. Availability, inclusion and compatibility depend on the approved configuration.
| Specification | US-K236CB-1 |
|---|---|
| Peripheral options | |
| Scanner | Reads common 1D / 2D barcodesPDF p. 4 |
| Camera | Optional wide-dynamic monocular / binocular facial cameraPDF p. 4 |
| NFC Card Reader | 125K ID /13.56M IC, Mifare1, CPU, Type A, ISO14443-A card read-writePDF p. 4 |
| Printer | Panel-type receipt printer; 58 mm / 80 mm paper width, custom tickets supportedPDF p. 4 |
| POS Holder | Custom bracket for POS terminalPDF p. 4 |
| Bill Recycler / Coin Recycler | Support automating transactions, cash&coin handling equipment and intelligent identificationPDF p. 4 |
| Bill recycler Specification | |
| Model | NV22 SpectralPDF p. 5 |
| Interfaces | USB,Open collectorPDF p. 5 |
| Power | Requirements:12V,Standby:250mA, Running: 1A,Peak:3APDF p. 5 |
| Protocols | SSP,ccTalkPDF p. 5 |
| Cashbox Options | 300/600 notesPDF p. 5 |
| Recycler Capacity | 40 mixed notesPDF p. 5 |
| Note Dimensions | Width: 60-82mm ,Length: 115-150mmPDF p. 5 |
| MCBF | 100,000PDF p. 5 |
| Coin validator, Hopper & Recycler Specification | |
| Model | SMART Coin SystemPDF p. 5 |
| Interfaces | USB option,Open collectorPDF p. 5 |
| Power | Requirements: 24V ,Standby: 200mA ,Running: 3A ,Peak: 6.5APDF p. 5 |
| Protocols | SSP,ccTalkPDF p. 5 |
| Coin Capacity | 1400 (€1) or 1050 (£1) or 1500 (quarters)PDF p. 5 |
| Mixed Coin Capacity | 250 (€2) + 700 (€1) + 300 (50c)PDF p. 5 |
How to use these specifications
These tables transcribe the supplied specification sheet. Computing platforms and peripherals are configuration choices, not a promise that every listed option is included. Confirm the final bill of materials before ordering.
TBD means not supplied; Est. means estimated. Dimensions and weights must be confirmed for the selected configuration before installation or shipping.
The original sheet prints the input supply as AV100-240V 50/60hz. Confirm the electrical input designation with engineering; it has not been silently corrected here.
The original English PDF is the source document. Translated tables are provided for reference; the approved quotation and configuration take precedence.
Procurement brief
What buyers can evaluate now.
Use published planning data for supplier screening. Confirm interfaces, compliance and final configuration before purchase approval.
Hardware format
- Cabinet family
- Freestanding kiosk
- Published display size
- See specification table
Intended applications

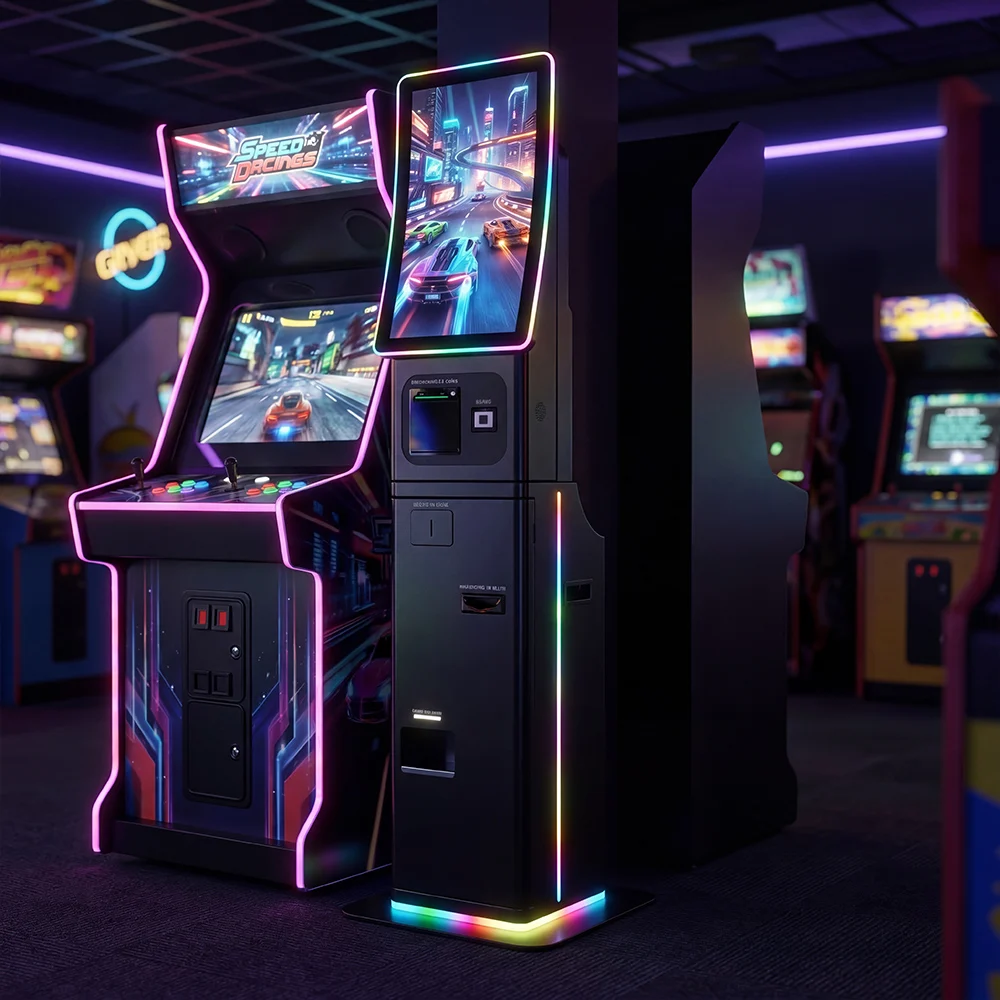

Gaming & Entertainment
Send workflow requirementsProject confirmation
Confirm peripheral models, interfaces, software ownership, target-market documents and acceptance criteria.
Review certification scopeModel selection guidance
Is US-K236CB-1 right for your project?
US-K236CB-1 is best evaluated for gaming, redemption, cash, ticket and membership workflows. The format is a practical fit when the project needs a prominent, full-height service point with room for integrated peripherals and maintenance access. It is a configurable hardware platform rather than a fixed off-the-shelf software package, so final compatibility is approved at project level.
Technical parameters follow the supplied PDF specification sheet. Review source notes and confirm the final configuration before ordering.
Workflow and users
Map every step for gaming, redemption, cash, ticket and membership workflows, including assisted-service fallback, accessibility and maintenance responsibility.
Installation and environment
Confirm footprint, mounting, accessible reach, cable routing, ventilation and service clearance for a freestanding cabinet that can be positioned as a visible service point without a customer counter.
Devices and interfaces
Name the exact peripheral models, I/O, SDK or protocol, paper and cash capacities, and the party responsible for certification.
Commercial approval
Validate the target market, quantity, sample scope and delivery window. The current planning reference is MOQ 1 unit with a typical lead time of 20 business days.
OEM/ODM scope
What can be customized on US-K236CB-1?
Usingwin reviews the hardware as a project configuration. Every item below remains subject to engineering, component and commercial approval.
Cabinet and industrial design
Review dimensions, finish, color, logo treatment, installation details and service-door access for the freestanding kiosk format.
Peripheral integration
Confirm the exact printer, scanner, NFC or card reader, payment terminal, camera, identity device and cash module before structural approval.
Computing and SDK boundary
Select the computing platform, interfaces, drivers and SDK handoff around the application owner and required device protocols.
Prototype and production
Move from requirement review and drawings to a configured sample, functional verification and production after written approval.
Continue project research
Supplied product details
Explore US-K236CB-1 from features to application fit.
This model-specific visual was matched by product name from the supplied detail-image archive. Quotation specifications and the approved configuration remain controlling.
View the full product detail graphic
Product video
Watch the customer-supplied footage prepared for browser playback.
Buyer questions
Questions about US-K236CB-1
Direct answers for early supplier evaluation. The quotation and approved specification remain the controlling project documents.
What is US-K236CB-1 best used for?
US-K236CB-1 is best evaluated for gaming, redemption, cash, ticket and membership workflows. The format is a practical fit when the project needs a prominent, full-height service point with room for integrated peripherals and maintenance access. It is a configurable hardware platform rather than a fixed off-the-shelf software package, so final compatibility is approved at project level.
Can Usingwin customize US-K236CB-1?
Yes. Usingwin can review the US-K236CB-1 cabinet, appearance, branding, computing hardware and peripheral layout as an OEM/ODM project. Feasibility, engineering cost and minimum order depend on the approved configuration.
Which peripherals can be integrated into US-K236CB-1?
Common project options include receipt printers, barcode or QR scanners, NFC and card readers, payment terminals, cameras, identity devices and cash modules. The exact model, dimensions, interface, certification status and software protocol must be supplied or approved before integration.
What software is included with US-K236CB-1?
Supporting software may be available for applicable cash collection or change-machine configurations. For other project scopes, Usingwin normally supplies the kiosk hardware and an SDK package so the buyer or system integrator can connect the required application.
What are the MOQ and lead time for US-K236CB-1?
The current product reference lists a minimum order of 1 unit and a typical lead time of 20 business days. These are planning references, not delivery guarantees; final timing follows configuration, component, artwork and commercial approval.
Configure US-K236CB-1 around the project.
Include the target market, workflow, quantity, peripherals, software boundary and delivery window.
Request a project quote
