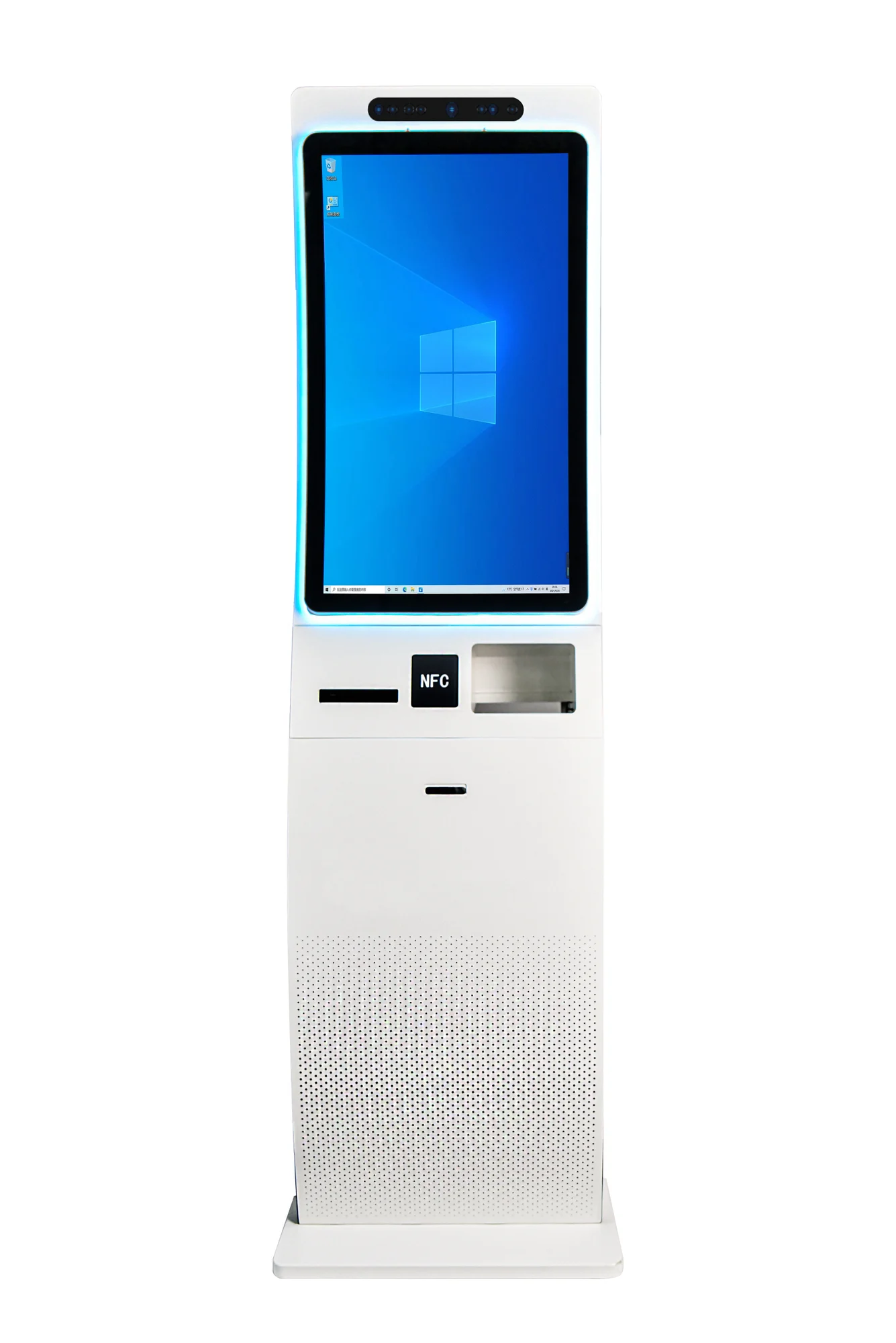

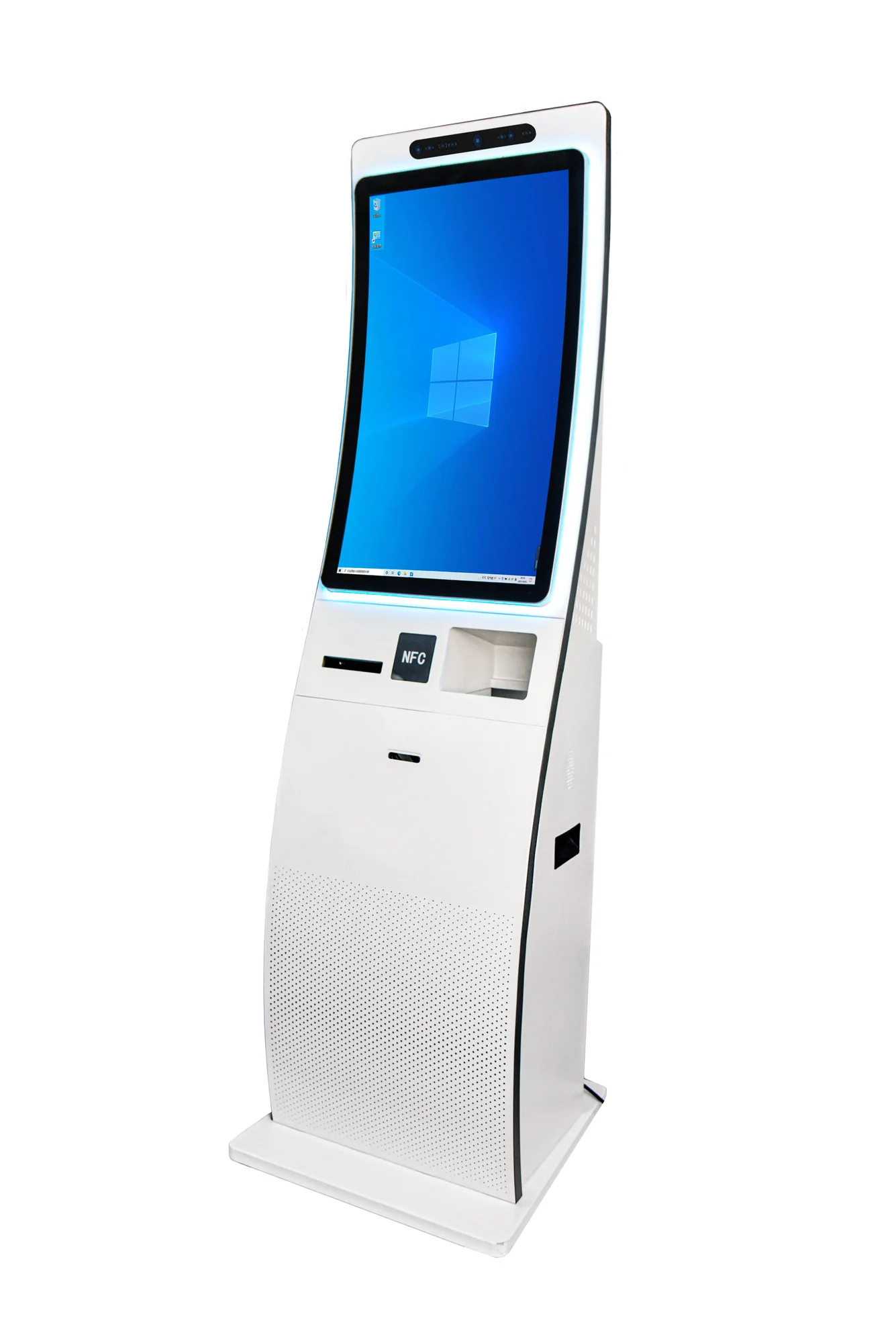

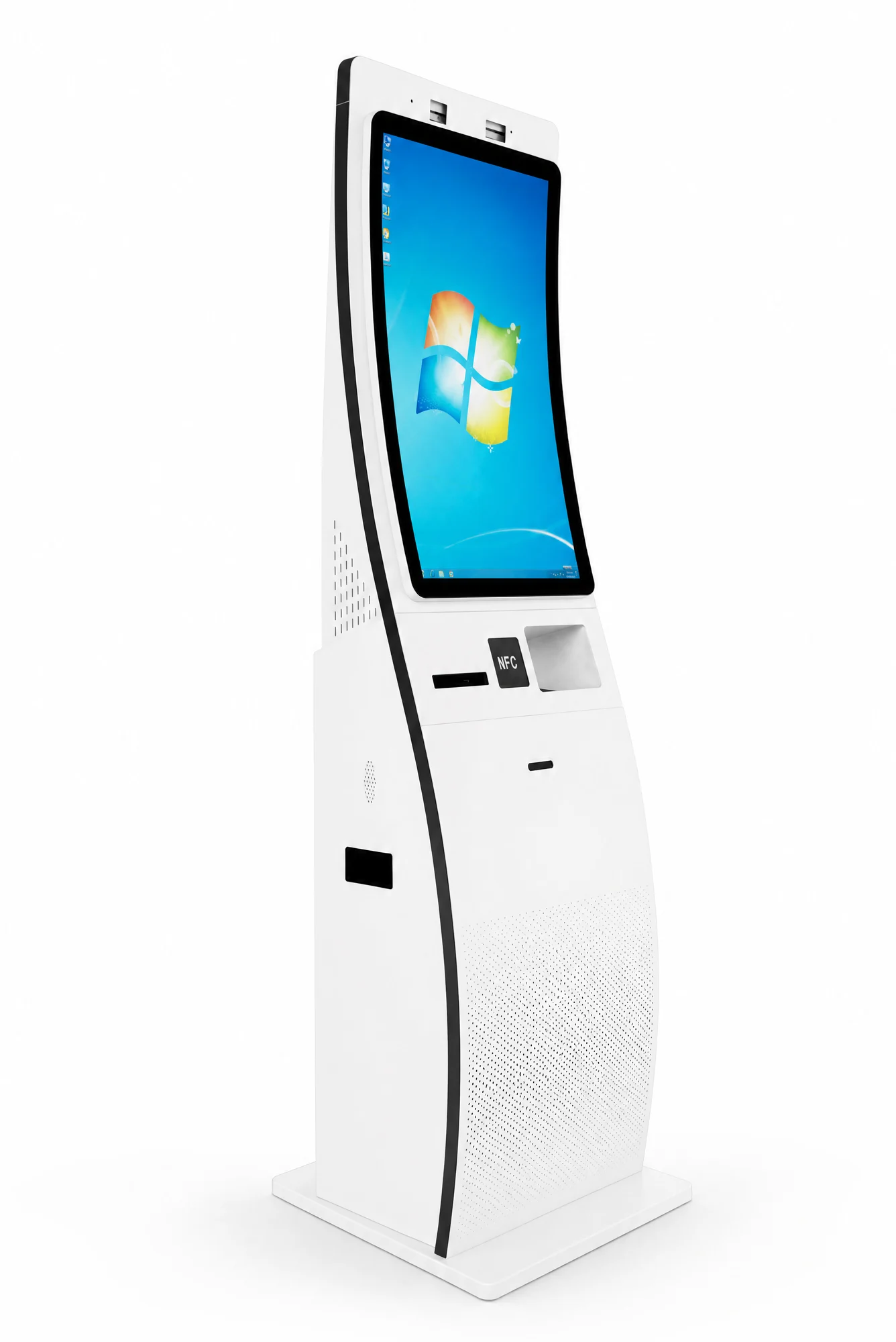

US-K320FS-2 product view 1
Freestanding kiosk
HOTEL CHECK‑IN KIOSK CABINET
US-K320FS-2
- Streamlined modern curved cabinet
- Ergonomic tilted 32" curved touchscreen
- Optional passport scanner & key dispenser
- Multi‑function SDK support
- Minimum order
- Confirm by configuration
- Typical lead time
- 20-25 business days
- Product format
- Freestanding kiosk
- Project scope
- Configured to order
Original supplier PDF. Review configuration options and confirmation notes in the specifications below.
Specifications
Product specifications, in one view.
Review the supplied hardware parameters, configuration options and original document before selecting your kiosk.
US-K320FS-2 specification sheet
Original English PDF · 6 pages · 0.25 MB
Get the specification PDF
Options are not all standard equipment. TBD and estimated values require confirmation.
| Specification | US-K320FS-2 |
|---|---|
| Physical characteristics | |
| Overall Dimensions | 600 * 523 * 1850 mmPDF p. 3 |
| Package Dimensions | 1976 * 696 * 716 mmPDF p. 3 |
| Net Weight | Est. 85 KGPDF p. 3 |
| Gross Weight | Est. 123 KGPDF p. 3 |
| Display | 32 inch Curved TFT-LCD, R1800 curvaturePDF p. 3 |
| Aspect ratio | 16:9PDF p. 3 |
| Resolution | 1920×1080PDF p. 3 |
| Backlight | LED backlightPDF p. 3 |
| Brightness | 350 cd / m²(Typ.)PDF p. 3 |
| Contrast | 3000:1(Typ.)PDF p. 3 |
| Response time | 8 msPDF p. 3 |
| Color reproduction | 16.7M , 72% NTSCPDF p. 3 |
| Viewing angle | 89 / 89 / 89 / 89 (Typ.)(CR≥10)PDF p. 3 |
| Touching | 10 Points (multipoint, single point optional)PDF p. 3 |
| Included Accessories | 1.8 m power cable ×1; front-door key ×2; back-door key ×2; switch-panel key ×2; voucher-printer key ×2PDF p. 3 |
| Computing options | |
| CPU | Intel I3, I5, I7, J6412 / RK3568, 3576, 3588PDF p. 3 |
| Operating System | Android 11, 13, 14, 16 / Windows 10 , 11 / Linux Debian, UbuntuPDF p. 3 |
| Memory | Windows: 4 / 8 / 16 / 32 / 64GB; Android: 2 / 4 / 8GBPDF p. 3 |
| Storage | Windows: 128GB / 256GB / 512GB / 1T ; Android: 16GB / 32GB / 64GB / 128GB / 256GBPDF p. 3 |
| Interfaces | |
| LAN Port | 1 × RJ45PDF p. 3 |
| USB Port | 4 × USBPDF p. 3 |
| DC Power Port | 1PDF p. 3 |
| Operating environment | |
| Operating Temperature | 0 ℃ ~ 40 ℃PDF p. 3 |
| Storage Temperature | -20 ℃ ~ 55 ℃PDF p. 4 |
| Operating Humidity | < 80% non-condensingPDF p. 4 |
| Storage Humidity | < 90% non-condensingPDF p. 4 |
| Power | |
| Power Supply | AV100-240V 50 / 60hzPDF p. 4 |
| Standby Max Power | Est. 100 WPDF p. 4 |
| Continuous Operation | 7×24 hoursPDF p. 4 |
Peripheral and cash-handling specifications
The following modules are described in the source document. Availability, inclusion and compatibility depend on the approved configuration.
| Specification | US-K320FS-2 |
|---|---|
| Peripheral options | |
| Passport Scanner | Document Recognition (OCR) Support: ID-1 3-line MRZ machine readable code, Hong Kong and Macao return permit; Support: ID-3 2-line MRZ machine readable code, such as electronic passport; Support: ID-2 2-line MRZ machine readable code, customized; Read time: The combined read time of imaging and OCR is less than 200 milliseconds; Image format: BMP&JPEG, can output 150dpi, 200dpi, 300dpi, 500dpi grayscale or color imagesPDF p. 4 |
| Key Dispenser | Usage: Support Mifare 1 ISO15693，ISO1443A standard card read, write, and issuing; Preventing dispensing double card simultaneously: Up gear and down gear swirl in different direction, and friction dispensing card can avoid dispensing double card at the same time, even suitable to some distorted cards; Stable card dispensing rate: Special friction dispensing structure and wear-resisting plastic wheel ensure card dispensing successful any time; Non-metal channel: Non-metal dispensing channel ensure card reading performance of contactless card not be affected; Collect card: Collect card to card issuing box from front gate of dispenser; Removable recycle box: removable recycle box，can stored 18 cards max. (0.76mm thickness); Card empty and pre-empty detect function and sound alarm; Card stand position: Many card stand positions to satisfy customer requirements; Communication interface: RS232 serial interface, suitable for multiple machines; Multiple machines communication: 1 RS232 serial interface communicates to control 16 equipments can help save money; Card available: Can issue all cards in the stacker in normal condition with the card holderPDF p. 4 |
| Receipt Printer | Print Method: direct thermal; Print density: 8d ot/mm; print direction: feed direction; Print Speed: 220 mm/s (Max); Paper width: 79.5±0.5 mm; Printable width: 72 mm; Cut paper method: partial cut / full cut; Line width: 3.75 mm; Width of paper loaded: 80 mm; Anti-blocking: with; Buzzer: withPDF p. 5 |
| QR Code Scanner | 2D: PDF417, QR Code, DataMatrix, etc; 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etcPDF p. 5 |
| NFC & RFID Dual-Frequency Card Reader | This module is a compact dual-frequency RFID contactless card read- write module (supports 125K ID cards, 13.56M IC Mifare1 / CPU / Type-A / 14443A cards). It features excellent anti-interference performance, high recognition rate and broad compatibility. It can be used standalone or for secondary development; Available interfaces: USB (Keyboard-emulation / HID), TTL/232 serial port, Wiegand, 485; Users do not need to master complex control commands for RF chips such as RC523, nor do they need knowledge of card protocols. Simply place the card within the sensing range of the reader module, and the unique physical serial number of the card can be read instantly. Contents of designated card sectors can also be retrieved via commands.PDF p. 5 |
| Mono / Dual-Lens Camera | Choose single-lens or binocular camera for face capture, identity verificationPDF p. 5 |
| Adjustable POS Mounting Bracket | Flexible adjustable bracket, enabling installation of customer-owned third-party POS card terminalsPDF p. 5 |
How to use these specifications
These tables transcribe the supplied specification sheet. Computing platforms and peripherals are configuration choices, not a promise that every listed option is included. Confirm the final bill of materials before ordering.
TBD means not supplied; Est. means estimated. Dimensions and weights must be confirmed for the selected configuration before installation or shipping.
The original sheet prints the input supply as AV100-240V 50/60hz. Confirm the electrical input designation with engineering; it has not been silently corrected here.
The original English PDF is the source document. Translated tables are provided for reference; the approved quotation and configuration take precedence.
Procurement brief
What buyers can evaluate now.
Use published planning data for supplier screening. Confirm interfaces, compliance and final configuration before purchase approval.
Hardware format
- Cabinet family
- Freestanding kiosk
- Published display size
- See specification table
Intended applications
Hotel & Travel (Airport)
Send workflow requirementsProject confirmation
Confirm peripheral models, interfaces, software ownership, target-market documents and acceptance criteria.
Review certification scopeModel selection guidance
Is US-K320FS-2 right for your project?
Evaluate US-K320FS-2 for hotel guest check-in, identity capture and room-card workflows. Validate the selected card device, hotel access system and PMS integration in a prototype; the cabinet alone does not provide the hotel application.
Technical parameters follow the supplied PDF specification sheet. Review source notes and confirm the final configuration before ordering.
Workflow and users
Define reservation lookup, identity checks, payment, card issuance and staff fallback with the hotel software partner.
Installation and environment
Confirm footprint, mounting, accessible reach, cable routing, ventilation and service clearance for a freestanding cabinet that can be positioned as a visible service point without a customer counter.
Devices and interfaces
Name the exact peripheral models, I/O, SDK or protocol, paper and cash capacities, and the party responsible for certification.
Commercial approval
Validate the target market, quantity, sample scope and delivery window. The current planning reference is MOQ Confirm by configuration with a typical lead time of 20-25 business days.
OEM/ODM scope
What can be customized on US-K320FS-2?
Usingwin reviews the hardware as a project configuration. Every item below remains subject to engineering, component and commercial approval.
Cabinet and industrial design
Review dimensions, finish, color, logo treatment, installation details and service-door access for the freestanding kiosk format.
Peripheral integration
Confirm the exact printer, scanner, NFC or card reader, payment terminal, camera, identity device and cash module before structural approval.
Computing and SDK boundary
Select the computing platform, interfaces, drivers and SDK handoff around the application owner and required device protocols.
Prototype and production
Move from requirement review and drawings to a configured sample, functional verification and production after written approval.
Continue project research
Supplied product details
Explore US-K320FS-2 from features to application fit.
This model-specific visual was matched by product name from the supplied detail-image archive. Quotation specifications and the approved configuration remain controlling.
View the full product detail graphic
Product video
Watch the customer-supplied footage prepared for browser playback.
Buyer questions
Questions about US-K320FS-2
Direct answers for early supplier evaluation. The quotation and approved specification remain the controlling project documents.
What is US-K320FS-2 best used for?
Evaluate US-K320FS-2 for hotel guest check-in, identity capture and room-card workflows. Validate the selected card device, hotel access system and PMS integration in a prototype; the cabinet alone does not provide the hotel application.
Can Usingwin customize US-K320FS-2?
Yes. Usingwin can review the US-K320FS-2 cabinet, appearance, branding, computing hardware and peripheral layout as an OEM/ODM project. Feasibility, engineering cost and minimum order depend on the approved configuration.
Which peripherals can be integrated into US-K320FS-2?
The US-K320FS-2 specification lists a passport scanner, key dispenser, receipt printer, QR scanner, NFC/RFID reader, camera and POS mounting bracket. Confirm the exact device models, inclusion and software compatibility before ordering.
What software is included with US-K320FS-2?
PMS software and door-lock integration are not assumed to be included. Agree the hardware, SDK handoff, card encoding or dispensing, application owner and integration tests in the project scope.
What are the MOQ and lead time for US-K320FS-2?
The current product reference lists a minimum order of Confirm by configuration and a typical lead time of 20-25 business days. These are planning references, not delivery guarantees; final timing follows configuration, component, artwork and commercial approval.
