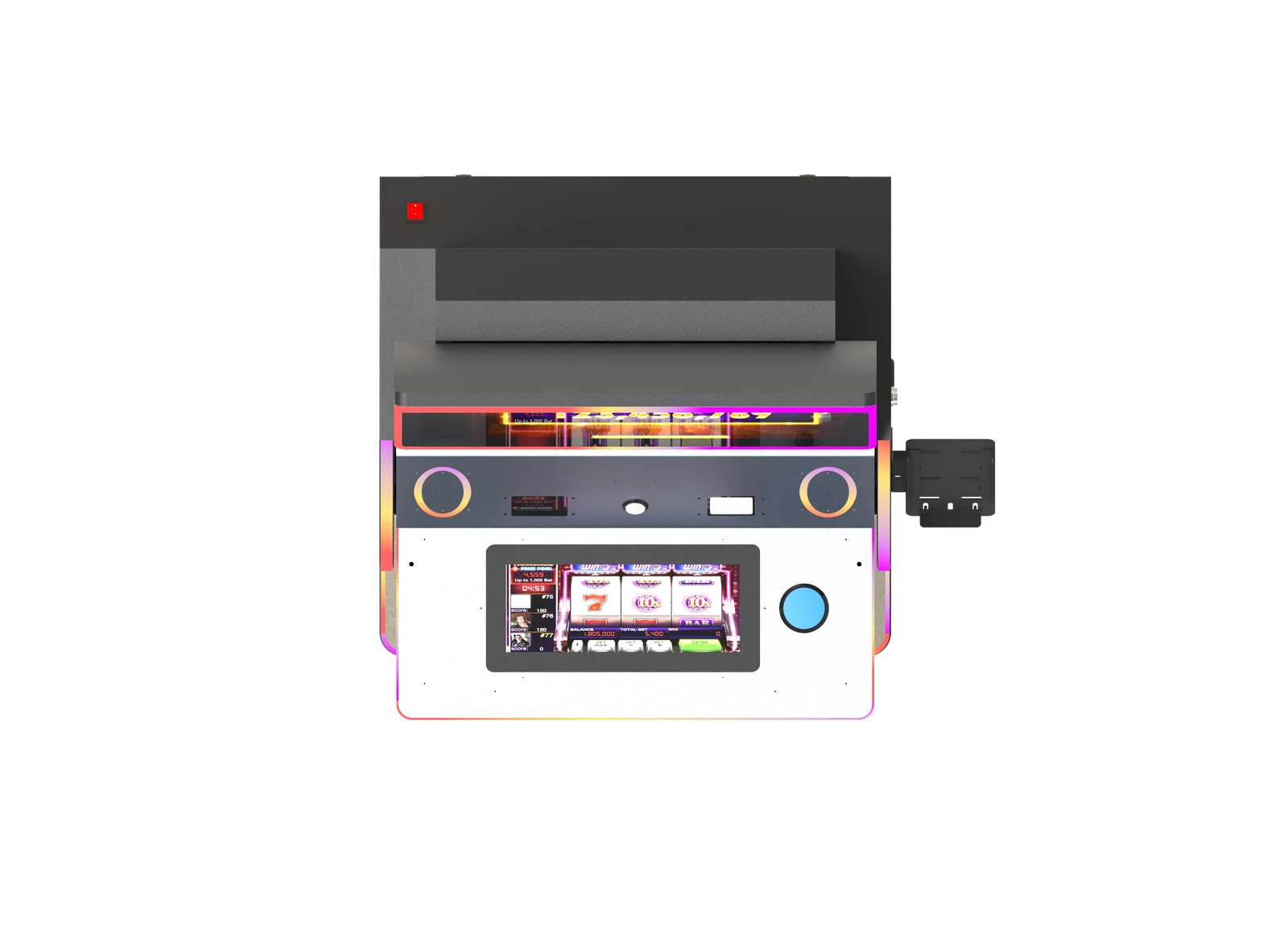

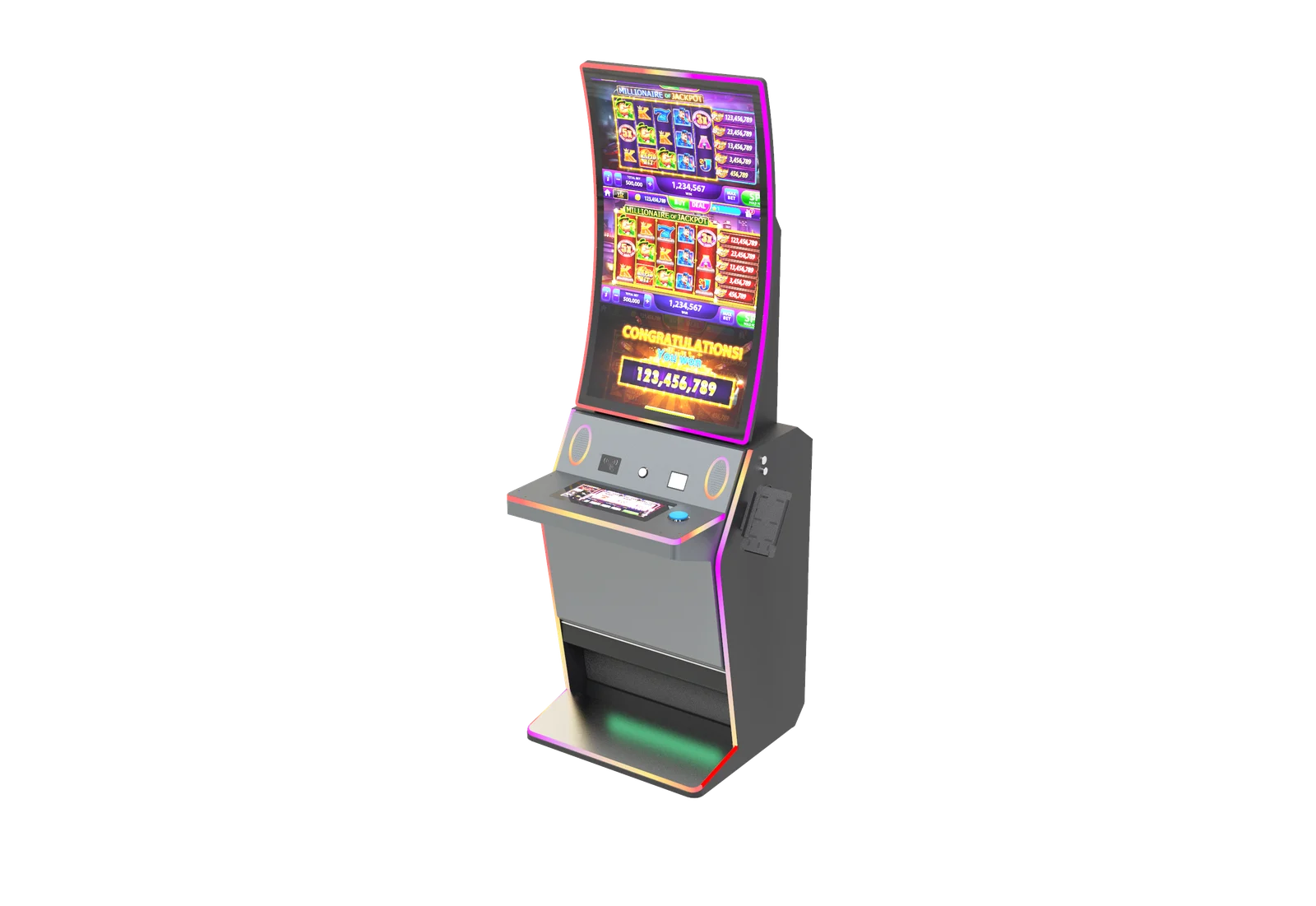

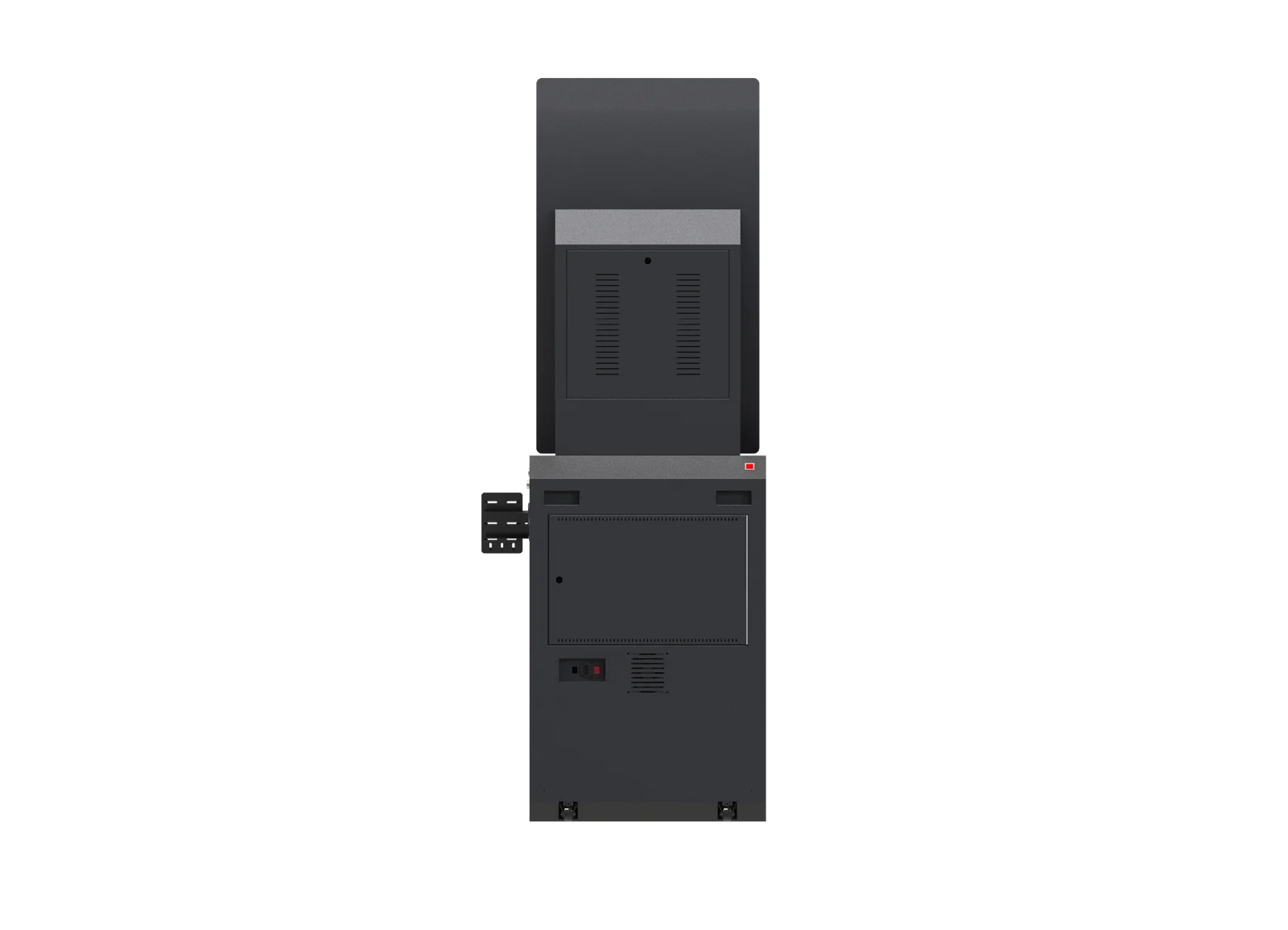

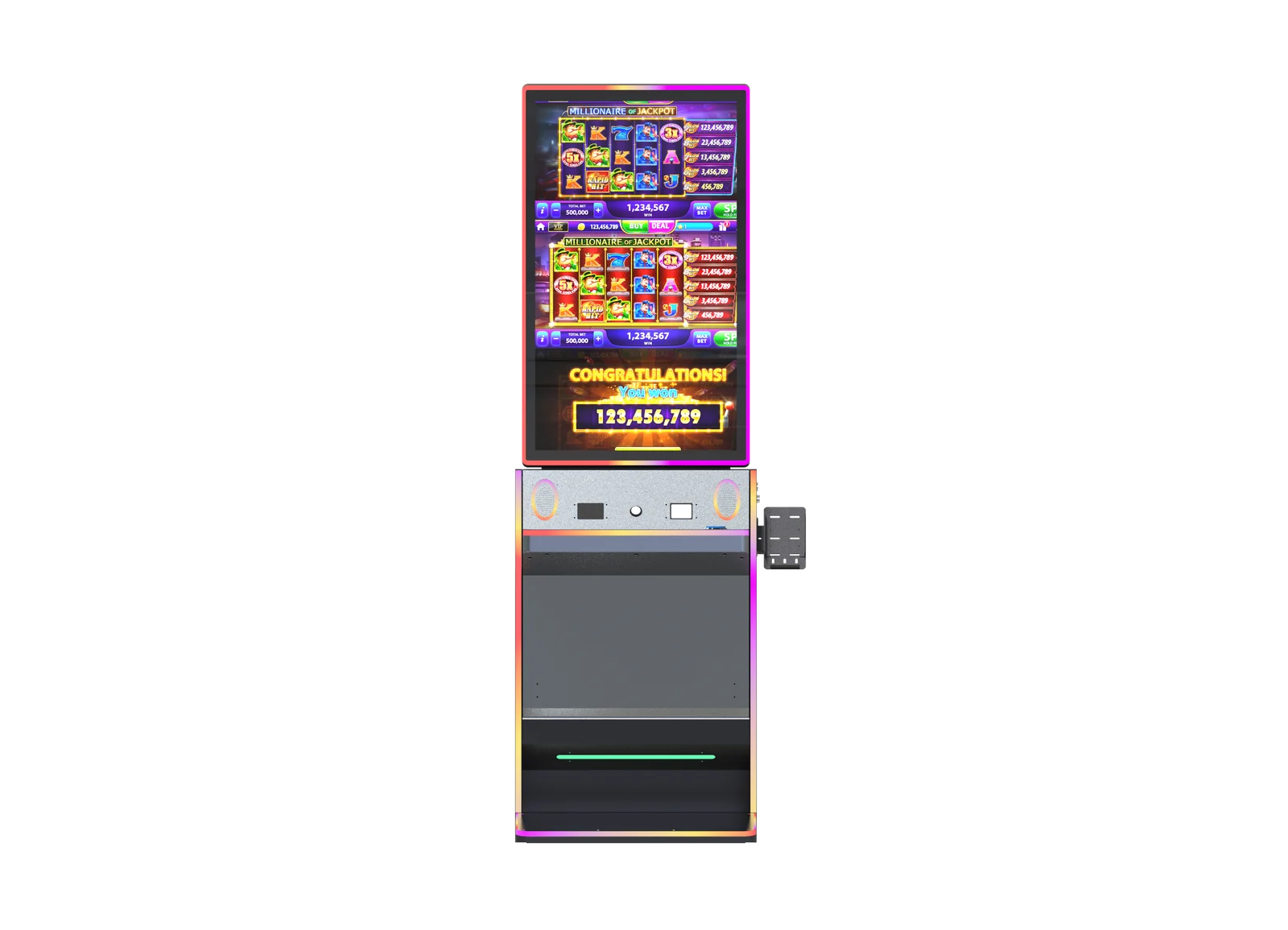

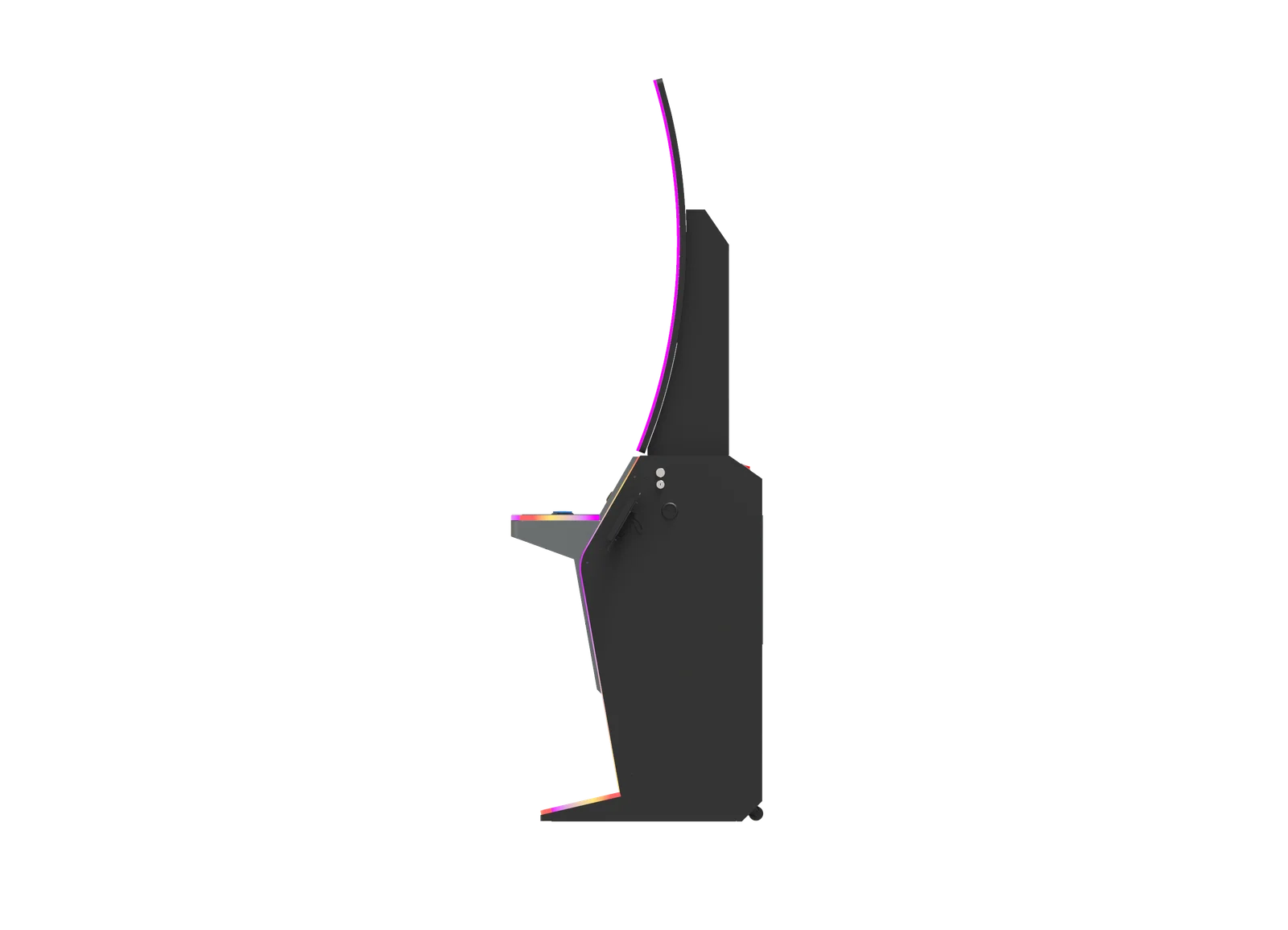

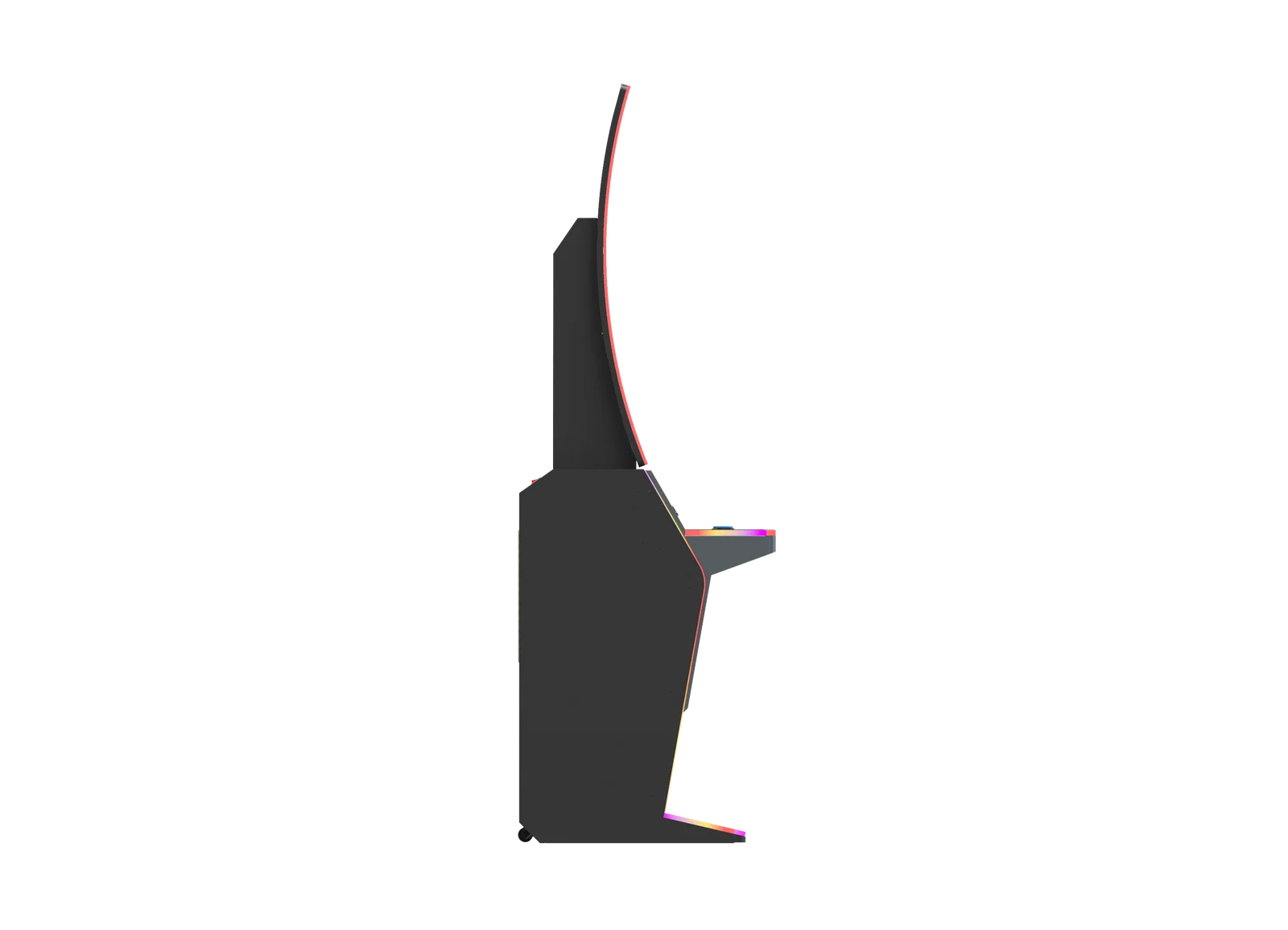

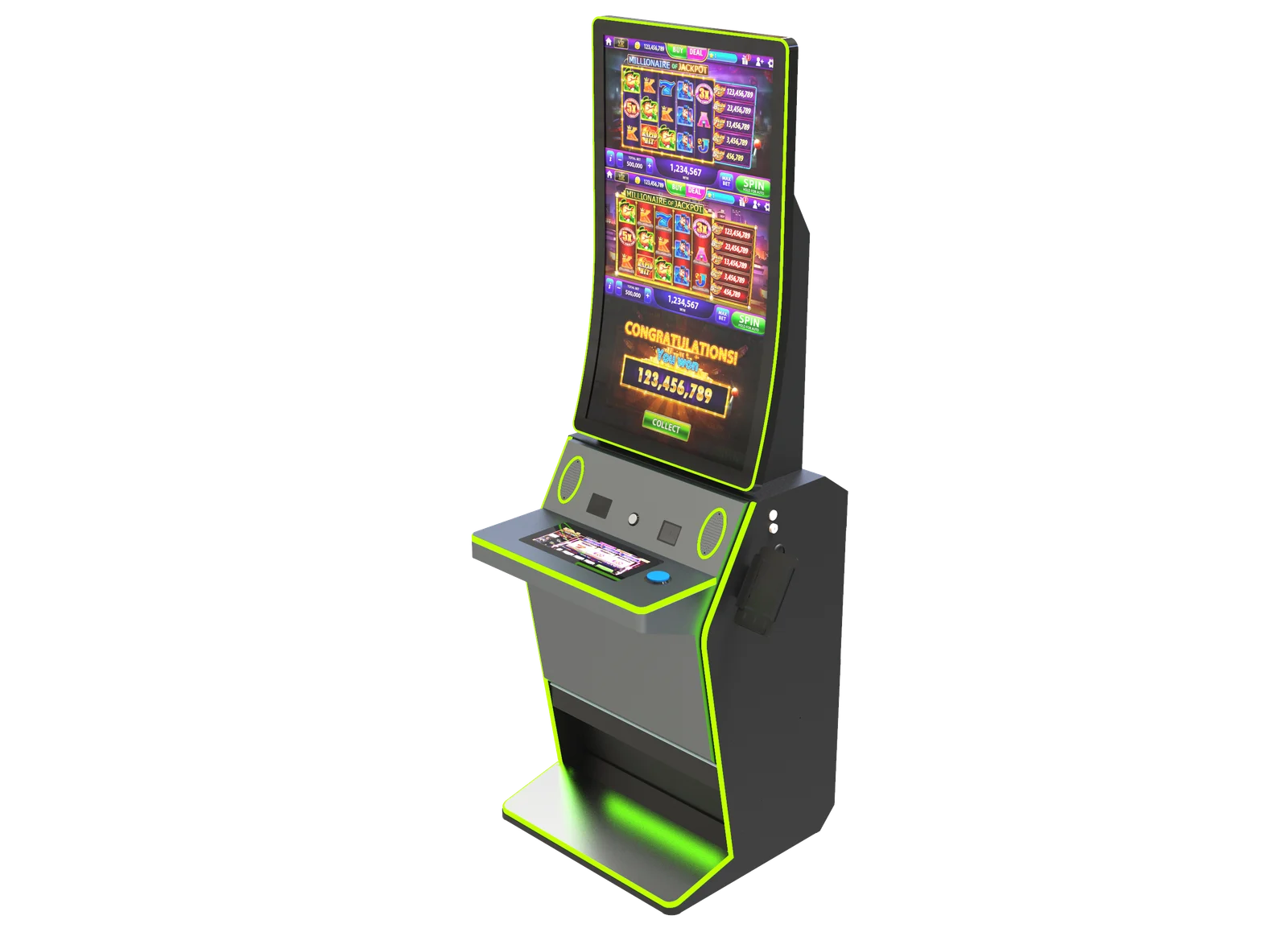

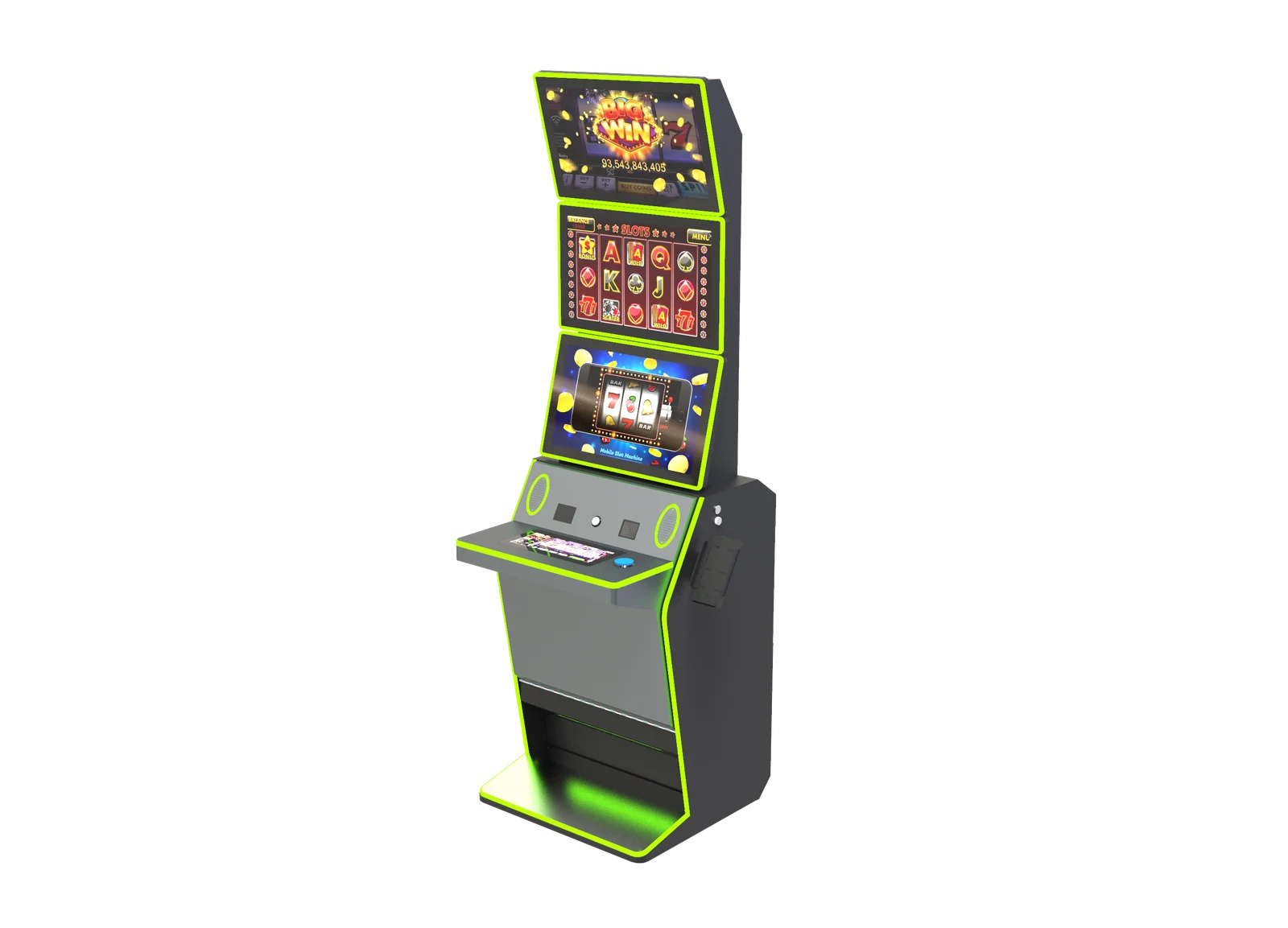

US-K430CB-1 product view 1
Freestanding kiosk
SKILL‑GAME CABINET
US-K430CB-1
- Heavy‑duty freestanding metal cabinet
- Built‑in programmable RGB LED light strips

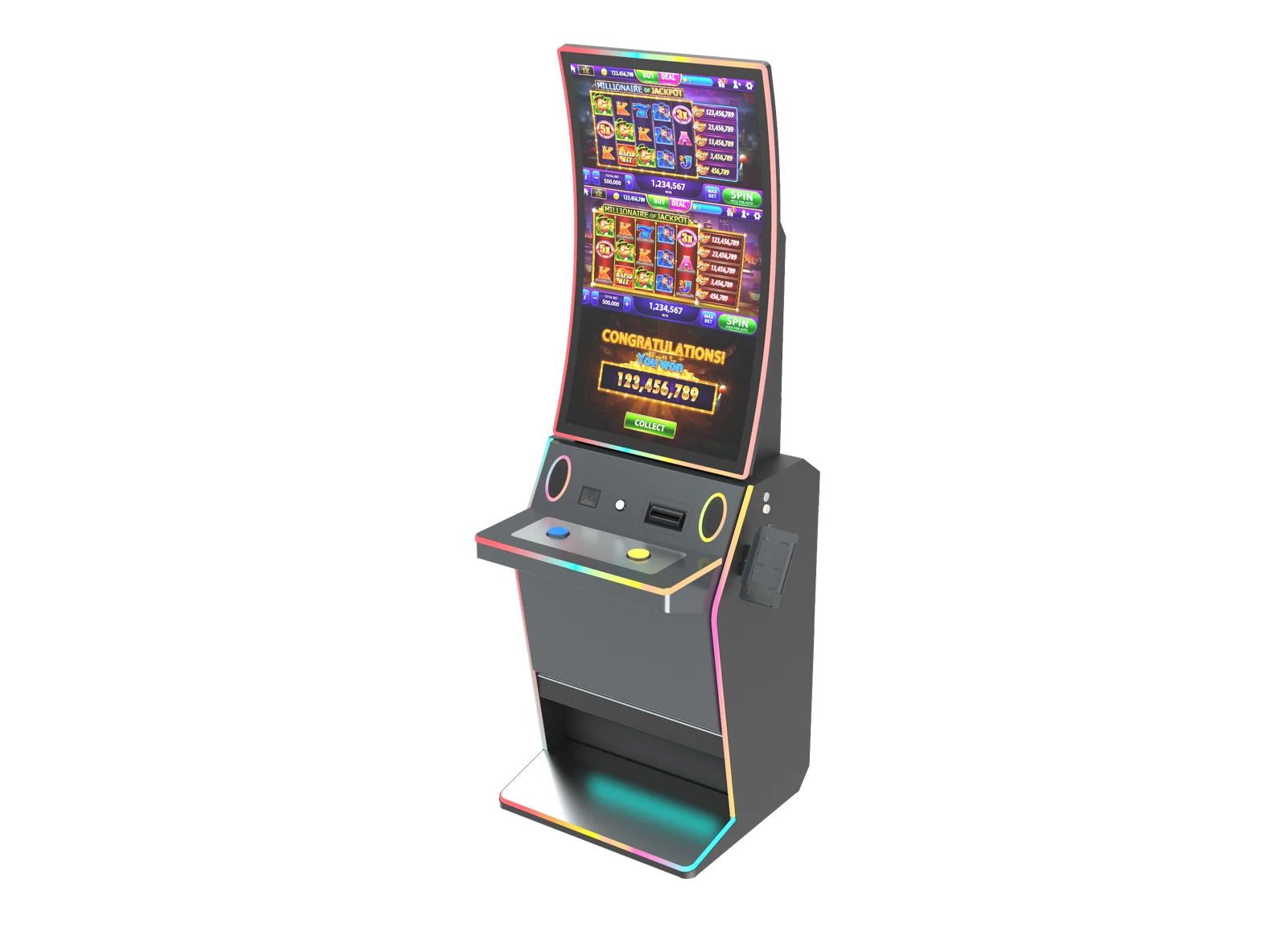

- Optional immersive C/J‑curved gaming display
- Optional ICT PA7 / ITL NV200S bill acceptor / ...
- Minimum order
- 1 unit
- Typical lead time
- 20 business days
- Product format
- Freestanding kiosk
- Project scope
- Configured to order
Original supplier PDF. Review configuration options and confirmation notes in the specifications below.
Specifications
Product specifications, in one view.
Review the supplied hardware parameters, configuration options and original document before selecting your kiosk.
US-K430CB-1 specification sheet
Original English PDF · 6 pages · 0.38 MB
Get the specification PDF
Options are not all standard equipment. TBD and estimated values require confirmation.
| Specification | US-K430CB-1 |
|---|---|
| Physical characteristics | |
| Overall Dimensions | 679.7 * 640 * 2010 mm (Data sourced from 43”C Curved-Screen gaming cabinet)PDF p. 3 |
| Package Dimensions | 95 * 76 * 125 mm (Data sourced from 43”C Curved-Screen gaming cabinet) Note: Packing in one piece creates a big volume and high freight. We take the machine apart and pack the parts together.Suspected source dimension / unit error — not suitable for freight planning.PDF p. 3 |
| Net Weight | 97 KG (Data sourced from 43”C Curved-Screen gaming cabinet)PDF p. 3 |
| Gross Weight | 145 KG (Data sourced from 43”C Curved-Screen gaming cabinet)PDF p. 3 |
| Display | 43” C/J-shaped Curved Display or 23.6” Triple-screen; LCD liquid crystal touch screenPDF p. 3 |
| Aspect ratio | 16:9PDF p. 3 |
| Resolution | 1920×1080@60HzPDF p. 3 |
| Backlight | LED backlightPDF p. 3 |
| Touching | Supports 10-point touchPDF p. 3 |
| Included Accessories | 1.8 m power cable ×1; front-door key ×2; back-door key ×2; switch-panel key ×2;PDF p. 3 |
| Computing options | |
| CPU | Intel I3, I5, I7, J6412 / RK3568, 3576, 3588PDF p. 3 |
| Operating System | Android 11, 12, 13, 14, 16 / Windows 10 , 11 / Linux Debian,UbuntuPDF p. 3 |
| Memory | Windows: 4 / 8 / 16 / 32 / 64GB; Android: 2 / 4 / 8GBPDF p. 3 |
| Storage | Windows: 128GB / 256GB / 512GB / 1T Android: 16GB / 32GB / 64GB / 128GB / 256GBPDF p. 3 |
| Interfaces | |
| LAN Port | 1 × RJ45PDF p. 3 |
| USB Port | 4 × USBPDF p. 3 |
| DC Power Port | 1PDF p. 3 |
| Operating environment | |
| Operating Temperature | 0 ℃ ~ 50 ℃PDF p. 3 |
| Storage Temperature | -20 ℃ ~ 55 ℃PDF p. 4 |
| Operating Humidity | < 80% non-condensingPDF p. 4 |
| Storage Humidity | < 90% non-condensingPDF p. 4 |
| Power | |
| Power Supply | AV100-240V 50/60hzPDF p. 4 |
| Standby Max Power | Est. 120 WPDF p. 4 |
| Continuous Operation | 7×24 hoursPDF p. 4 |
Peripheral and cash-handling specifications
The following modules are described in the source document. Availability, inclusion and compatibility depend on the approved configuration.
| Specification | US-K430CB-1 |
|---|---|
| Peripheral options | |
| I-Deck Touch Display | Compact 12.3 inch auxiliary touch deck delivers sharp visuals and highly responsive multi-touch performancePDF p. 4 |
| Phoenix Thermal Printer (Reserved Position) | Pre-reserved mounting compartment compatible with the Phoenix thermal ticket printerPDF p. 4 |
| QR Code Scanner | Supports multiple QR code & bar code formats for boarding-pass, ticket and document scanningPDF p. 4 |
| Bill Acceptor & Recycler Module | Like ITL NV200S & ICT PA7 bill acceptor. Secure banknote acceptance, validation and mixed-denomination banknote recycling & payout for cash transactionsPDF p. 4 |
| NFC & RFID Dual-Frequency Card Reader | Dual-frequency contactless read-write module: 125KHz ID, 13.56MHz IC Mifare1, CPU & Type-A 14443APDF p. 4 |
| Adjustable POS Mounting Bracket | Flexible adjustable bracket, enabling installation of customer-owned third-party POS card terminalsPDF p. 4 |
| Expandable Audio Support | Extra speaker can be supplemented on top of the existing onboard horn to upgrade audio outputPDF p. 4 |
How to use these specifications
These tables transcribe the supplied specification sheet. Computing platforms and peripherals are configuration choices, not a promise that every listed option is included. Confirm the final bill of materials before ordering.
TBD means not supplied; Est. means estimated. Dimensions and weights must be confirmed for the selected configuration before installation or shipping.
The original sheet prints the input supply as AV100-240V 50/60hz. Confirm the electrical input designation with engineering; it has not been silently corrected here.
The original English PDF is the source document. Translated tables are provided for reference; the approved quotation and configuration take precedence.
Procurement brief
What buyers can evaluate now.
Use published planning data for supplier screening. Confirm interfaces, compliance and final configuration before purchase approval.
Hardware format
- Cabinet family
- Freestanding kiosk
- Published display size
- See specification table
Intended applications
Gaming & Entertainment
Send workflow requirementsProject confirmation
Confirm peripheral models, interfaces, software ownership, target-market documents and acceptance criteria.
Review certification scopeModel selection guidance
Is US-K430CB-1 right for your project?
US-K430CB-1 is best evaluated for gaming, redemption, cash, ticket and membership workflows. The format is a practical fit when the project needs a prominent, full-height service point with room for integrated peripherals and maintenance access. It is a configurable hardware platform rather than a fixed off-the-shelf software package, so final compatibility is approved at project level.
Technical parameters follow the supplied PDF specification sheet. Review source notes and confirm the final configuration before ordering.
Workflow and users
Map every step for gaming, redemption, cash, ticket and membership workflows, including assisted-service fallback, accessibility and maintenance responsibility.
Installation and environment
Confirm footprint, mounting, accessible reach, cable routing, ventilation and service clearance for a freestanding cabinet that can be positioned as a visible service point without a customer counter.
Devices and interfaces
Name the exact peripheral models, I/O, SDK or protocol, paper and cash capacities, and the party responsible for certification.
Commercial approval
Validate the target market, quantity, sample scope and delivery window. The current planning reference is MOQ 1 unit with a typical lead time of 20 business days.
OEM/ODM scope
What can be customized on US-K430CB-1?
Usingwin reviews the hardware as a project configuration. Every item below remains subject to engineering, component and commercial approval.
Cabinet and industrial design
Review dimensions, finish, color, logo treatment, installation details and service-door access for the freestanding kiosk format.
Peripheral integration
Confirm the exact printer, scanner, NFC or card reader, payment terminal, camera, identity device and cash module before structural approval.
Computing and SDK boundary
Select the computing platform, interfaces, drivers and SDK handoff around the application owner and required device protocols.
Prototype and production
Move from requirement review and drawings to a configured sample, functional verification and production after written approval.
Continue project research
Supplied product details
Explore US-K430CB-1 from features to application fit.
This model-specific visual was matched by product name from the supplied detail-image archive. Quotation specifications and the approved configuration remain controlling.
View the full product detail graphic
Product video
Watch the customer-supplied footage prepared for browser playback.
Buyer questions
Questions about US-K430CB-1
Direct answers for early supplier evaluation. The quotation and approved specification remain the controlling project documents.
What is US-K430CB-1 best used for?
US-K430CB-1 is best evaluated for gaming, redemption, cash, ticket and membership workflows. The format is a practical fit when the project needs a prominent, full-height service point with room for integrated peripherals and maintenance access. It is a configurable hardware platform rather than a fixed off-the-shelf software package, so final compatibility is approved at project level.
Can Usingwin customize US-K430CB-1?
Yes. Usingwin can review the US-K430CB-1 cabinet, appearance, branding, computing hardware and peripheral layout as an OEM/ODM project. Feasibility, engineering cost and minimum order depend on the approved configuration.
Which peripherals can be integrated into US-K430CB-1?
Common project options include receipt printers, barcode or QR scanners, NFC and card readers, payment terminals, cameras, identity devices and cash modules. The exact model, dimensions, interface, certification status and software protocol must be supplied or approved before integration.
What software is included with US-K430CB-1?
The final software boundary is agreed during project review. Usingwin normally supplies kiosk hardware with an SDK package for customer or system-integrator application work; operating system, drivers and any pre-installation must be confirmed for the selected configuration.
What are the MOQ and lead time for US-K430CB-1?
The current product reference lists a minimum order of 1 unit and a typical lead time of 20 business days. These are planning references, not delivery guarantees; final timing follows configuration, component, artwork and commercial approval.
