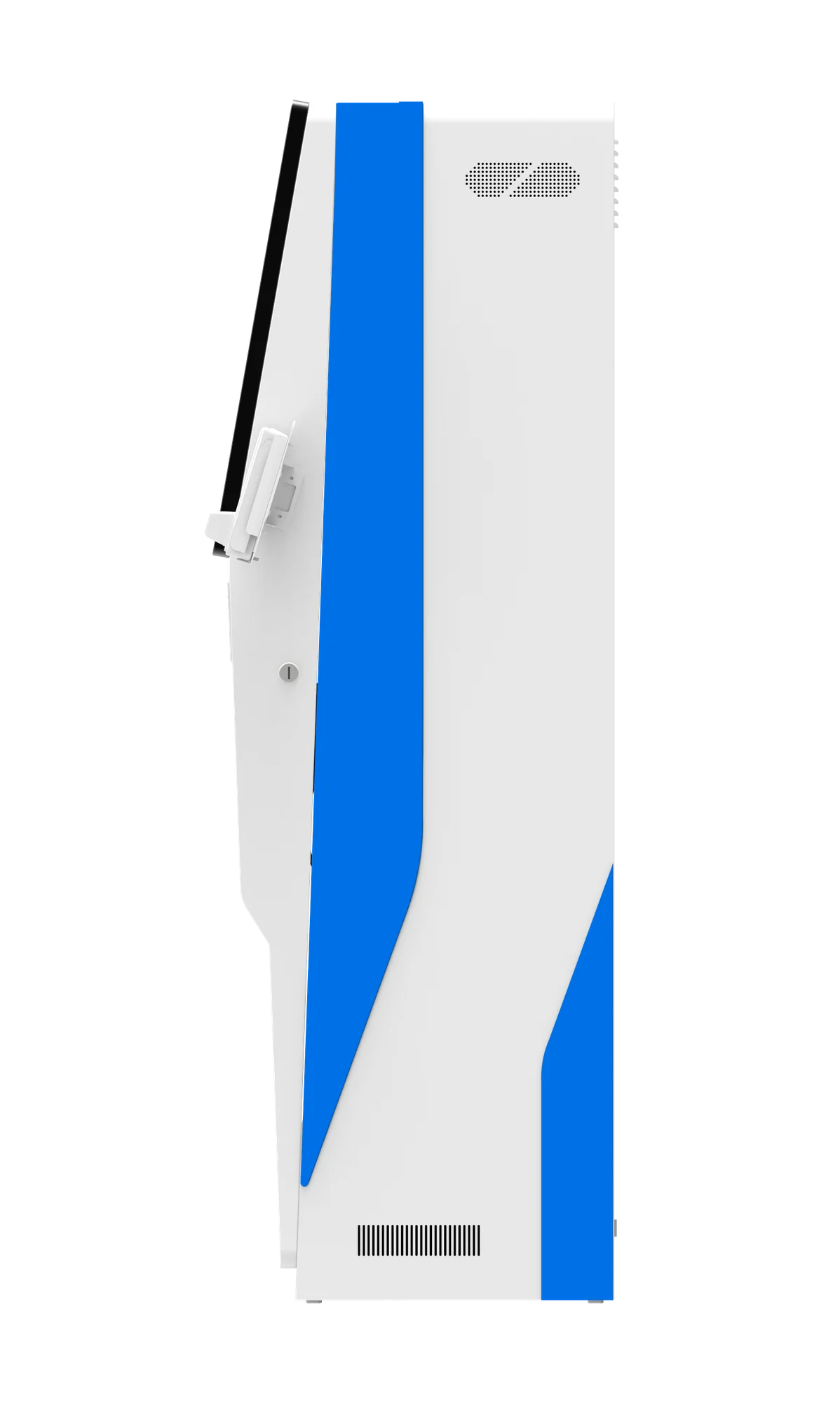

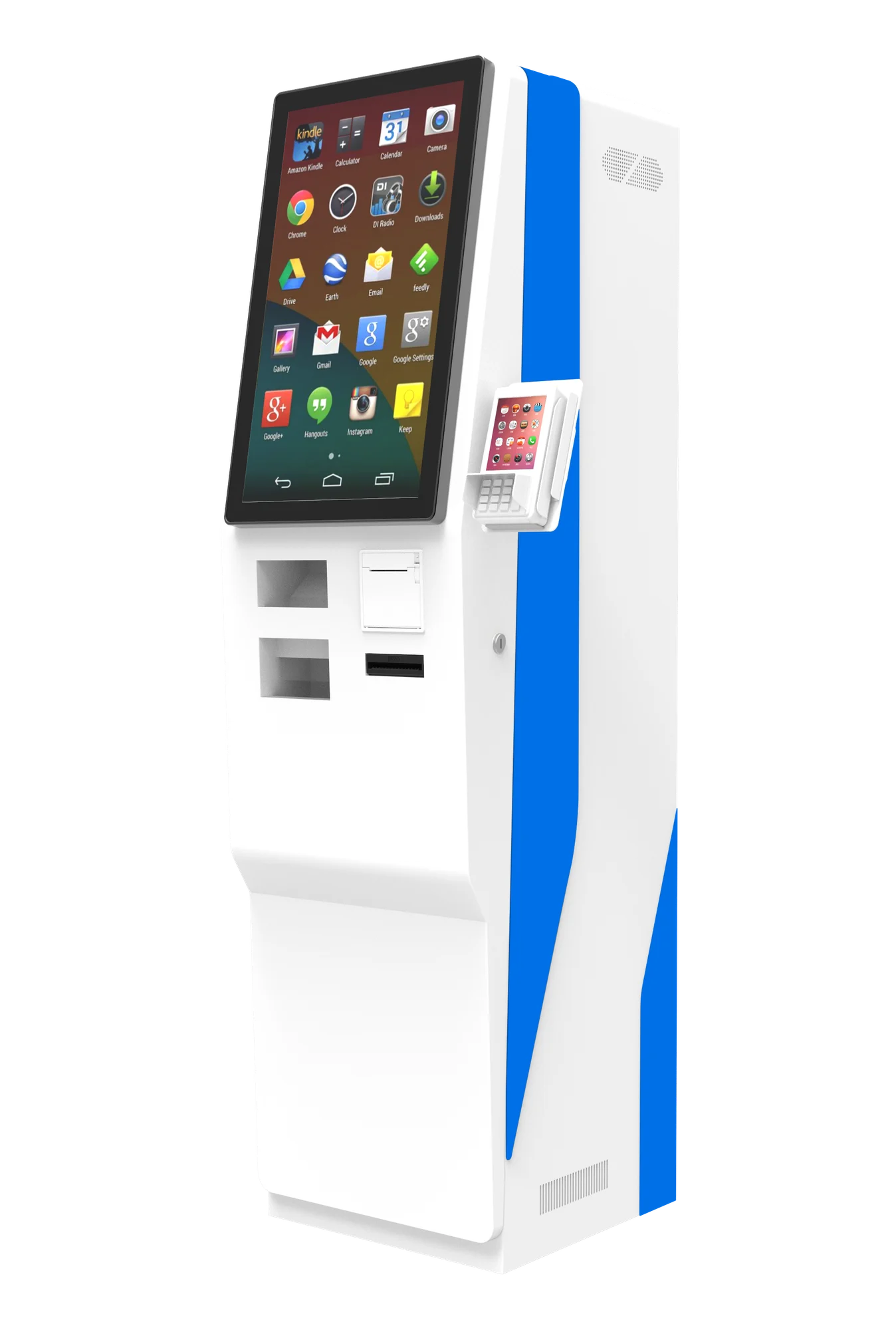

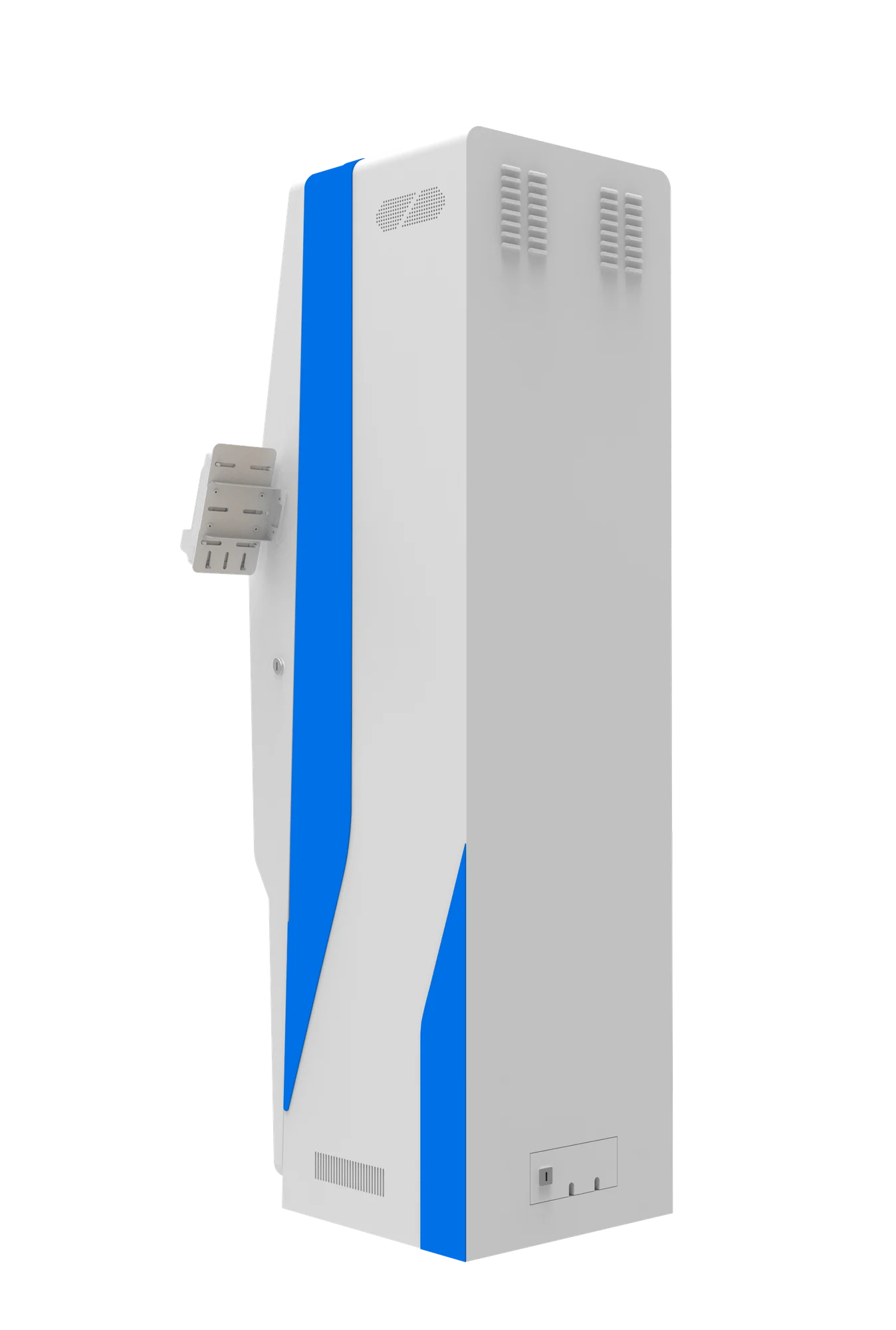

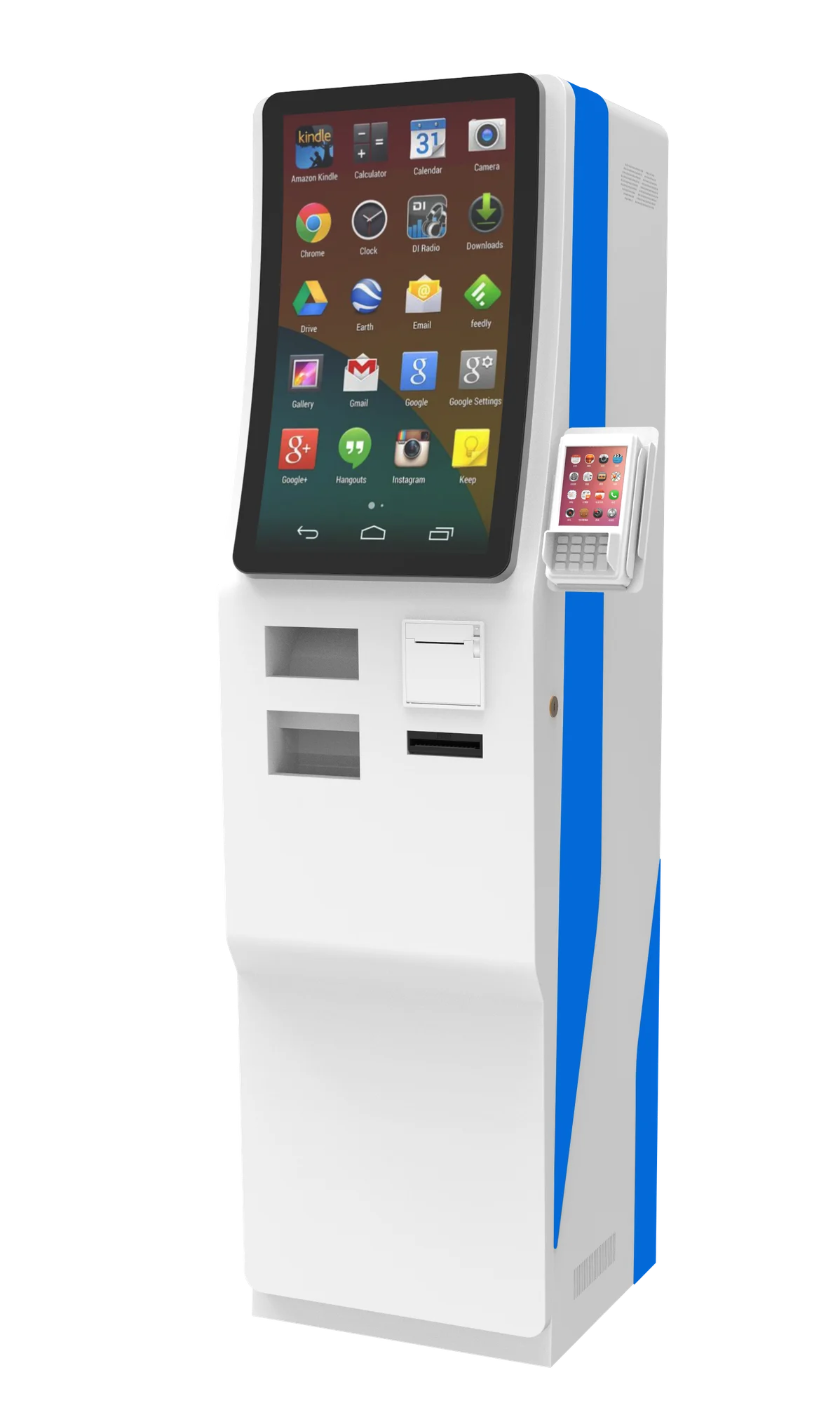

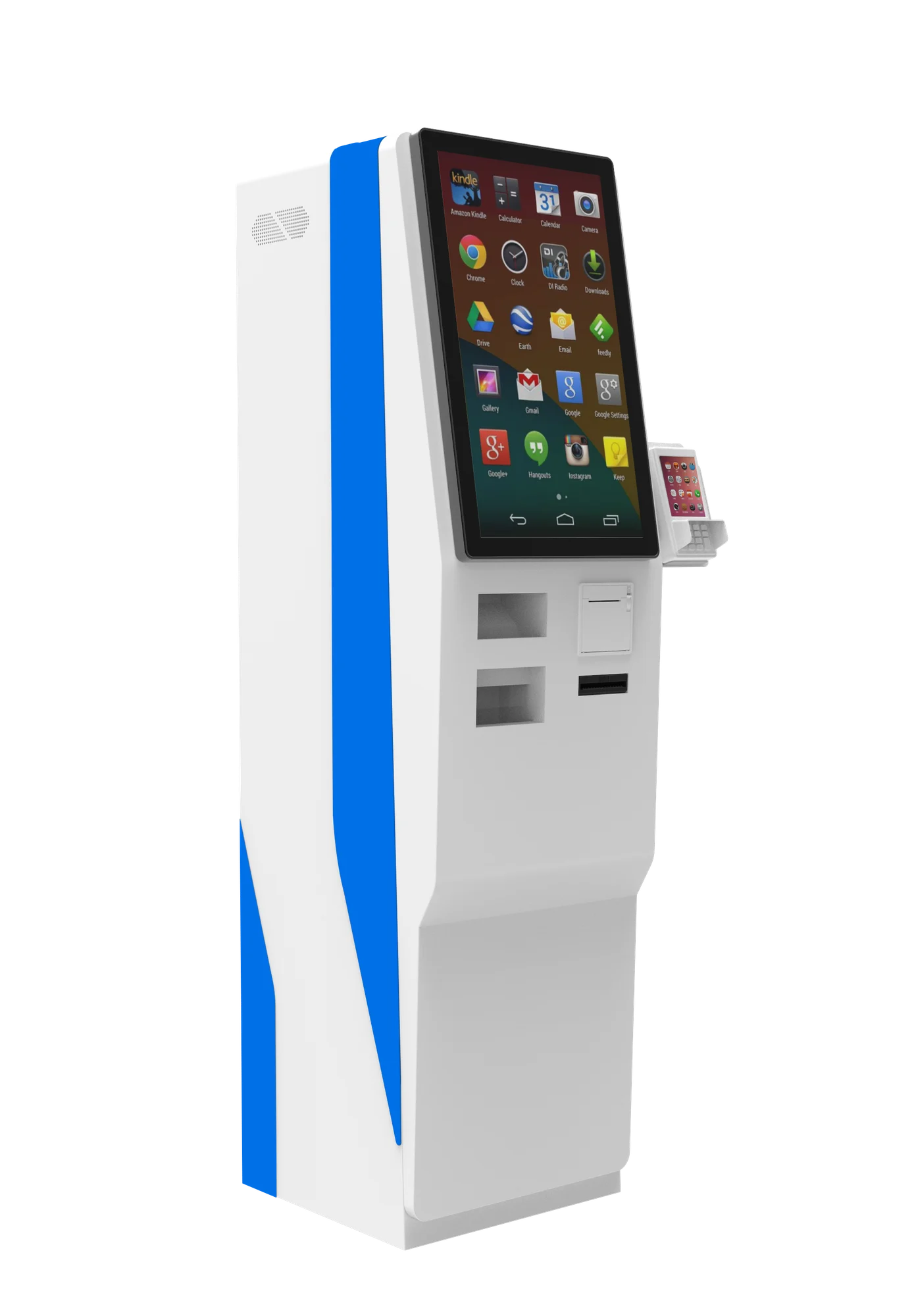

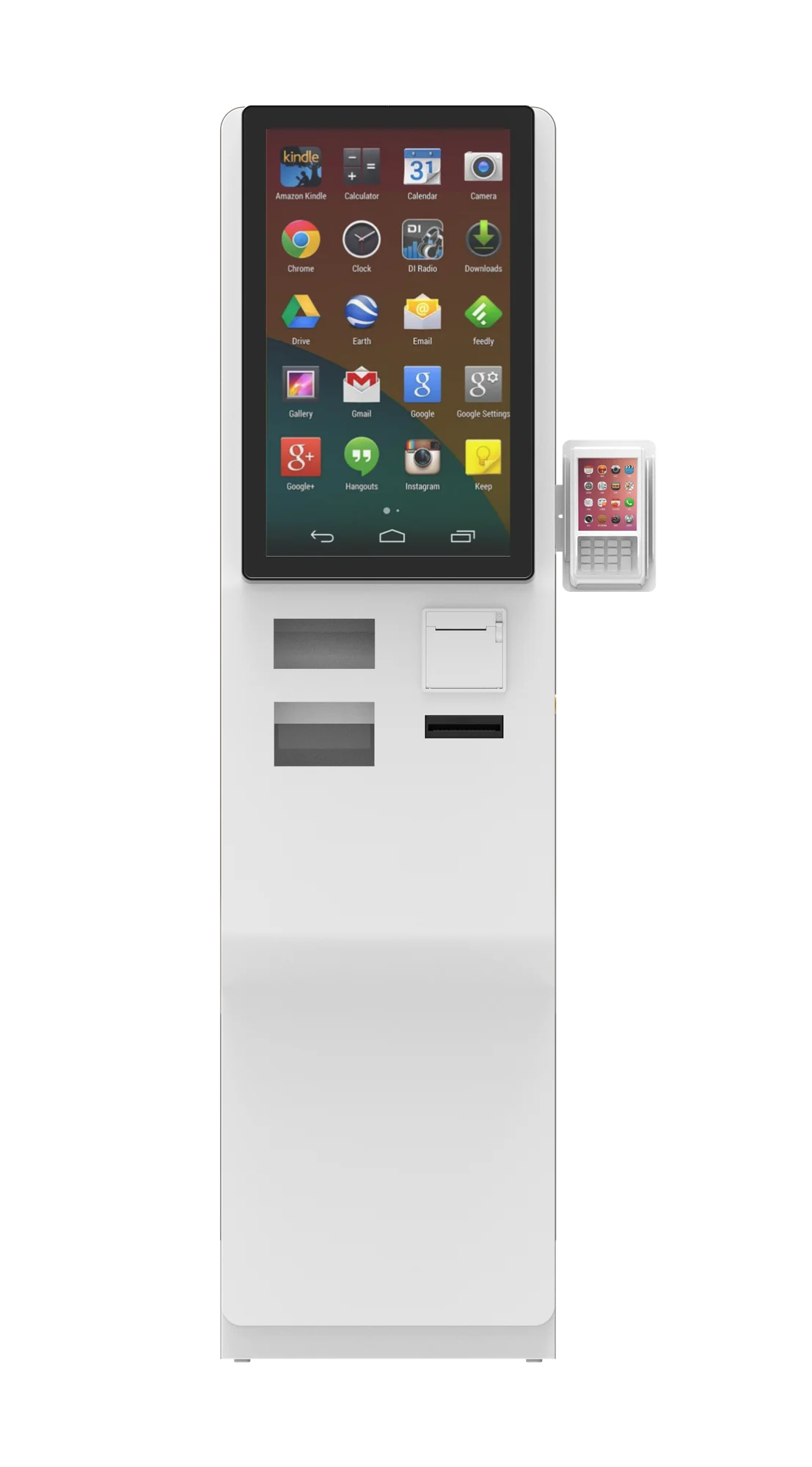

US-K236CB-2 product view 1
Freestanding kiosk
CURRENCY EXCHANGE KIOSK
US-K236CB-2
- Heavy‑duty freestanding metal cabinet
- 23.6" flat / curved capacitive touch display
- 15‑language multi‑language support
- 10‑20 currencies acceptance
- Minimum order
- 1 unit
- Typical lead time
- 20-25 business days
- Product format
- Freestanding kiosk
- Project scope
- Configured to order
Original supplier PDF. Review configuration options and confirmation notes in the specifications below.
Specifications
Product specifications, in one view.
Review the supplied hardware parameters, configuration options and original document before selecting your kiosk.
US-K236CB-2 specification sheet
Original English PDF · 6 pages · 0.25 MB
Get the specification PDF
Options are not all standard equipment. TBD and estimated values require confirmation.
| Specification | US-K236CB-2 |
|---|---|
| Physical characteristics | |
| Overall Dimensions | 490 * 403 * 1505 mmPDF p. 3 |
| Package Dimensions | TBDPDF p. 3 |
| Net Weight | TBDPDF p. 3 |
| Gross Weight | TBDPDF p. 3 |
| Display | 23.6" Flat & Curved Capacitive Touch Display OptionsPDF p. 3 |
| Aspect ratio | 16:9PDF p. 3 |
| Resolution | 1920×1080PDF p. 3 |
| Backlight | LED backlightPDF p. 3 |
| Touching | Supports 10-point touchPDF p. 3 |
| Included Accessories | 1.8 m power cable ×1; front-door key ×2; back-door key ×2; switch-panel key ×2; voucher-printer key ×2PDF p. 3 |
| Computing options | |
| CPU | Intel I3, I5, I7, J6412 / RK3568, 3576, 3588PDF p. 3 |
| Operating System | Android 11,13,14,16 / Windows 10 , 11 / Linux Debian, UbuntuPDF p. 3 |
| Memory | Windows: 4 / 8 / 16 / 32 / 64GB; Android: 2 / 4 / 8GBPDF p. 3 |
| Storage | Windows: 128GB / 256GB / 512GB / 1T; Android: 16GB / 32GB / 64GB / 128GB / 256GBPDF p. 3 |
| Interfaces | |
| LAN Port | 1 × RJ45PDF p. 3 |
| USB Port | 4 × USBPDF p. 3 |
| DC Power Port | 1PDF p. 3 |
| Operating environment | |
| Operating Temperature | 0 ℃ ~ 50 ℃PDF p. 3 |
| Storage Temperature | -20 ℃ ~ 55 ℃PDF p. 3 |
| Operating Humidity | < 80% non-condensingPDF p. 4 |
| Storage Humidity | < 90% non-condensingPDF p. 4 |
| Power | |
| Power Supply | AV100-240V 50 / 60hzPDF p. 4 |
| Standby Max Power | Est. 120 WPDF p. 4 |
| Continuous Operation | 7×24 hoursPDF p. 4 |
Peripheral and cash-handling specifications
The following modules are described in the source document. Availability, inclusion and compatibility depend on the approved configuration.
| Specification | US-K236CB-2 |
|---|---|
| Peripheral options | |
| Thermal Receipt Printer | 58mm Thermal Printer (80mm Thermal Printer Optional) Printing Method: Line-mode Thermal Printing Speed: 75 mm/s Paper Width: 57.5±0.5 mm Print Density: 8 dots/mm, 384 dots per line Effective Printing Width: 48 mm Paper Handling: Auto-cutter (Full or Partial Cut) Paper-out Detection: Photoelectric Sensor Print Head Life: 50 KM Cutter Life: 500,000 times Paper Roll Specification: Paper Width: 57.5±0.5 mm; Max Outer Diameter: φ50 mmPDF p. 4 |
| JCM Bill Acceptor | Banknote Validator Capable of identifying banknote authenticity, denomination and note type (e.g. 1, 5, 10 currency units, etc.). Authenticity verification is implemented via infrared, ultraviolet and other technologies. Banknote Counting & Amount Calculation Automatically counts inserted banknotes and calculates total amount. It compares against product price to execute change-giving or dispensing operations. Anti-Counterfeit Detection Identifies anti-counterfeit features including watermarks, security threads and fluorescence responses with dedicated algorithms and sensors to block counterfeit banknotes. Data Statistics & Account Reconciliation Supports daily and monthly settlement statistics. The backend management system provides transaction record inquiry, statistical analysis and account reconciliation functions.PDF p. 4 |
| Fujitsu Bill Dispenser | One machine can store banknotes of different denominations separately.PDF p. 5 |
| ICT Mini Hopper Coin Storage Modules | 2×Coin Hoppers, store different coin denominations separatelyPDF p. 5 |
| Adjustable POS Mounting Bracket | Flexible adjustable bracket, enabling installation of customer-owned third-party POS card terminals.PDF p. 5 |
How to use these specifications
These tables transcribe the supplied specification sheet. Computing platforms and peripherals are configuration choices, not a promise that every listed option is included. Confirm the final bill of materials before ordering.
TBD means not supplied; Est. means estimated. Dimensions and weights must be confirmed for the selected configuration before installation or shipping.
The original sheet prints the input supply as AV100-240V 50/60hz. Confirm the electrical input designation with engineering; it has not been silently corrected here.
The original English PDF is the source document. Translated tables are provided for reference; the approved quotation and configuration take precedence.
Procurement brief
What buyers can evaluate now.
Use published planning data for supplier screening. Confirm interfaces, compliance and final configuration before purchase approval.
Hardware format
- Cabinet family
- Freestanding kiosk
- Published display size
- See specification table
Intended applications
Hotel & Travel (Airport), Government & Finance
Send workflow requirementsProject confirmation
Confirm peripheral models, interfaces, software ownership, target-market documents and acceptance criteria.
Review certification scopeModel selection guidance
Is US-K236CB-2 right for your project?
Evaluate US-K236CB-2 for currency exchange and cash payout, with currencies, denominations, cash capacity and service access agreed for the site. A hotel location does not make this a guest check-in or room-card kiosk.
Technical parameters follow the supplied PDF specification sheet. Review source notes and confirm the final configuration before ordering.
Workflow and users
Define the currency exchange flow, cash-in and cash-out mix, replenishment plan and assisted-service fallback before choosing the modules.
Installation and environment
Confirm footprint, mounting, accessible reach, cable routing, ventilation and service clearance for a freestanding cabinet that can be positioned as a visible service point without a customer counter.
Devices and interfaces
Name the exact peripheral models, I/O, SDK or protocol, paper and cash capacities, and the party responsible for certification.
Commercial approval
Validate the target market, quantity, sample scope and delivery window. The current planning reference is MOQ 1 unit with a typical lead time of 20-25 business days.
OEM/ODM scope
What can be customized on US-K236CB-2?
Usingwin reviews the hardware as a project configuration. Every item below remains subject to engineering, component and commercial approval.
Cabinet and industrial design
Review dimensions, finish, color, logo treatment, installation details and service-door access for the freestanding kiosk format.
Peripheral integration
Confirm the exact printer, scanner, NFC or card reader, payment terminal, camera, identity device and cash module before structural approval.
Computing and SDK boundary
Select the computing platform, interfaces, drivers and SDK handoff around the application owner and required device protocols.
Prototype and production
Move from requirement review and drawings to a configured sample, functional verification and production after written approval.
Supplied product details
Explore US-K236CB-2 from features to application fit.
This model-specific visual was matched by product name from the supplied detail-image archive. Quotation specifications and the approved configuration remain controlling.
View the full product detail graphic
Product video
Watch the customer-supplied footage prepared for browser playback.
Buyer questions
Questions about US-K236CB-2
Direct answers for early supplier evaluation. The quotation and approved specification remain the controlling project documents.
What is US-K236CB-2 best used for?
Evaluate US-K236CB-2 for currency exchange and cash payout, with currencies, denominations, cash capacity and service access agreed for the site. A hotel location does not make this a guest check-in or room-card kiosk.
Can Usingwin customize US-K236CB-2?
Yes. Usingwin can review the US-K236CB-2 cabinet, appearance, branding, computing hardware and peripheral layout as an OEM/ODM project. Feasibility, engineering cost and minimum order depend on the approved configuration.
Which peripherals can be integrated into US-K236CB-2?
The US-K236CB-2 specification lists a receipt printer, JCM bill acceptor, Fujitsu bill dispenser, ICT coin hoppers and a POS mounting bracket. Inclusion and compatibility depend on the approved configuration; room-card issuance is not documented for this model.
What software is included with US-K236CB-2?
Confirm the owner of the FX rate engine, transaction ledger and compliance workflow. These are not implied by the cabinet or its application tags; any Usingwin software, SDK and integration work must be listed in the quotation.
What are the MOQ and lead time for US-K236CB-2?
The current product reference lists a minimum order of 1 unit and a typical lead time of 20-25 business days. These are planning references, not delivery guarantees; final timing follows configuration, component, artwork and commercial approval.
Configure US-K236CB-2 around the project.
Include the target market, workflow, quantity, peripherals, software boundary and delivery window.
